Description

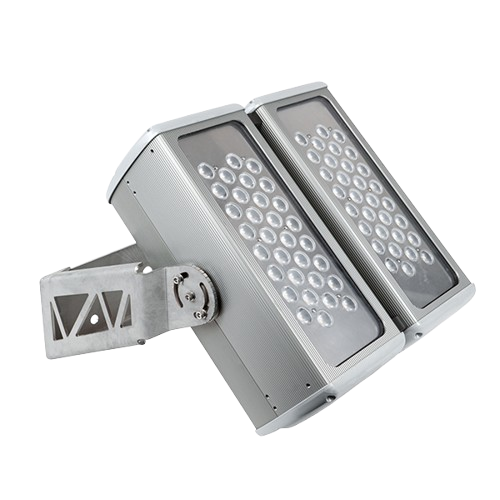

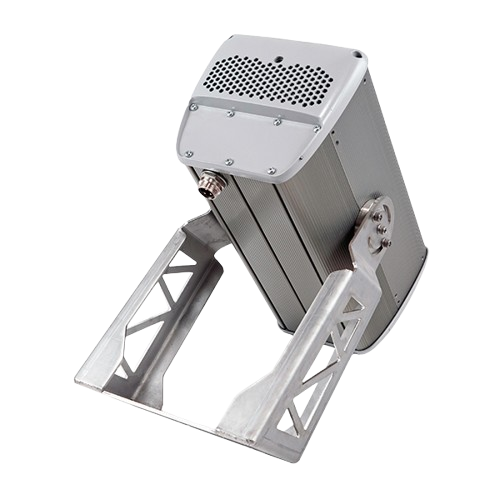

The ZLM Series by Nemalux is a high-output, modular LED luminaire engineered for elevated industrial, marine, and infrastructure applications. Each module delivers 28,000 to 56,000 lumens, and up to 112,000 lumens can be achieved with multi-module configurations. Designed for mounting heights from 30 to 160 feet, the ZLM offers superior lumen-per-pound performance and advanced optical control with wide, narrow, and asymmetric distribution options.

Constructed from Type II anodized, copper-free aluminum and sealed to IP66, it is built to withstand harsh outdoor environments, including exposure to salt, dust, vibration, and extreme temperatures. The ZLM uses a polycarbonate lens, pressure-equalizing membrane, and integrated driver with 0–10 V dimming and surge protection. With over 60,000-hour L90 performance and a 5-year transferable warranty, this luminaire is ideal for lighting large-scale spaces such as rig crowns, shipyards, refineries, rail yards, and airports.

Features:

• Up to 28,800 lumens per module.
• Watertight, lightweight, actively cooled, and modular.
• Redundant systems and thermal management for reliability.
• Light engine and power supply area sealed to IP66.
• Small form factor for reduced wind loading.
• Multiple optical profiles.
