Description

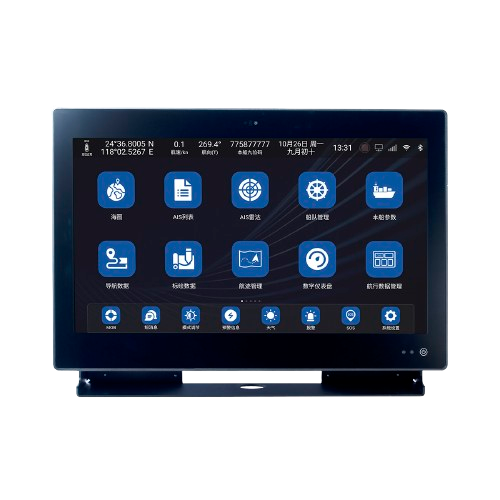

The XINUO XN60 (21.5″) Multi Function Display is designed for professional maritime installations where a large-format, high-visibility touchscreen interface is required. This model brings together key navigation and vessel-monitoring capabilities into one unit: dual-mode BDS+GPS GNSS positioning, chart plotting with support for major chart formats (C-MAP MAX, S-63, CJ-63) including satellite-imagery overlays; built-in Class B AIS functionality for vessel tracking; support for up to six-channel networked cameras for real-time video surveillance; and full network connectivity via Ethernet, WiFi and optional 4G for software updates and cloud-enabled services. The device runs on an Android operating system with a capacitive, non-air-gap multi-touch screen offering full viewing angles, and supports external USB and Bluetooth peripherals for further flexibility. It holds CE certification and type-approval from the China Classification Society (CCS), making it suitable for marine installation. Whether for chart work, radar/echo overlay (if integrated), vessel monitoring, or integrated bridge displays, this large 21.5″ MFD offers a high-function, large-screen solution for modern vessel operations.

XN60 series multi function display integrates functional modules such as GNSS, chart plotter, Class B AIS, video surveillance, etc. It supports Ethernet, WIFI, 4G to realize update software online and other cloud services.

Technical Specifications
