Description

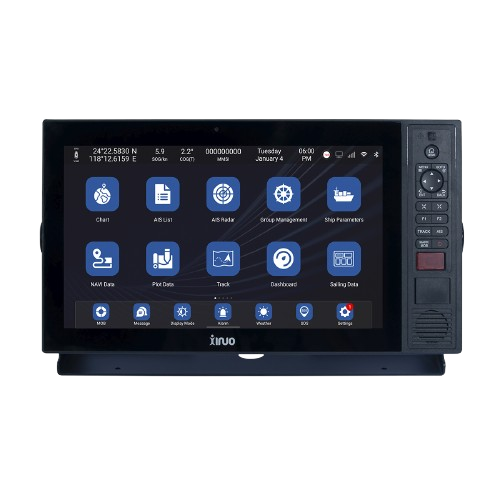

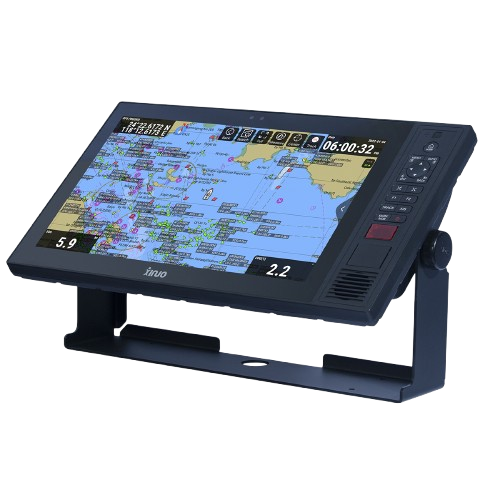

The XINUO XN60 (15.6″) Multi Function Display is engineered for professional maritime applications where space is slightly larger than standard consoles but still focused on compact integration. It runs on an Android-based system and delivers a large 15.6″ capacitive multi-touch screen with full viewing angles. The unit consolidates navigation modules such as GNSS positioning (dual-mode BDS + GPS), electronic chart plotting (supporting formats such as C-MAP MAX, S-63 and CJ-63), and built-in Class B AIS tracking. It also supports six network-camera inputs for real-time video surveillance, allowing vessel operators to monitor surroundings directly through the display interface.

Connectivity is robust: Ethernet, WiFi and 4G network communication enable software updates, cloud-based services and remote access. Expandable storage via dual TF (Micro SD) card slots supporting up to 512 GB ensures ample capacity for charts, video logs and system updates. The screen supports overlays of satellite imagery on top of chart views for enhanced situational awareness. With CE certification and approval by the China Classification Society (CCS), the XN60 (15.6″) is designed for installation in marine settings, offering a unified platform for navigation, surveillance, AIS tracking and network connectivity.

XN60 series multi function display integrates functional modules such as GNSS, chart plotter, Class B AIS, video surveillance, etc. It supports Ethernet, WIFI, 4G to realize update software online and other cloud services.

Technical Specifications
