Description

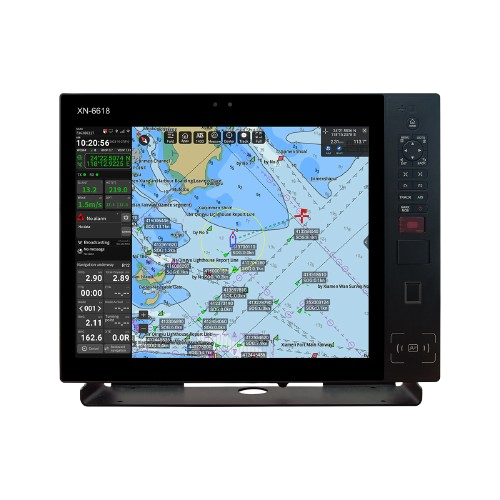

The XINUO XN-6618 Multi-Function Display Pro is a next-generation, fully-integrated marine system display designed to consolidate navigation, tracking and vessel-network functions into a single intelligent interface. At its core, the device offers high-precision GNSS positioning fused with electronic charting (ECS) and a built-in Class B AIS transceiver, enabling both vessel positioning and dynamic target tracking. On top of that, the unit supports radar and echo-sounder data input, real-time radar echo visualisation, as well as CCTV feeds with AI-based video recognition — enabling enhanced situational awareness around the vessel.

The display runs on an intelligent operating system with touch-screen control, voice activation and remote assistant capabilities, providing a highly scalable and stable platform. It supports overlaying multiple data layers (e.g., satellite imagery over charts) and uses standard chart formats (such as S-57, S-63, C-MAP) for broad compatibility. On the networking side, the XN-6618 offers multi-mode connectivity: 5G cellular, WiFi, Bluetooth, Gigabit Ethernet and optional VSAT (satellite broadband) or satellite phone support — making it suitable for vessels that require ship-to-shore data link, cloud updates and remote monitoring.

For electronic system control, the unit includes digital switching/control features for shipboard systems – such as lighting and power distribution – via integrated digital electronic control. With its front-facing camera and microphone, remote assistance and voice commands are possible. All of this is packaged in a marine-grade 17-inch touchscreen module that meets classification requirements (e.g., approved by the China Classification Society – CCS) and is intended for professional maritime navigation and monitoring installations.

Technical Specifications
