Description

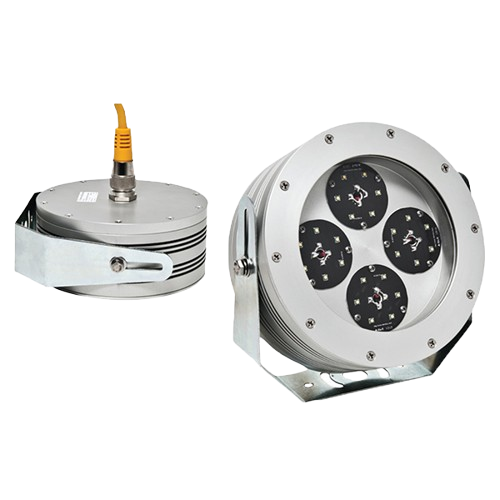

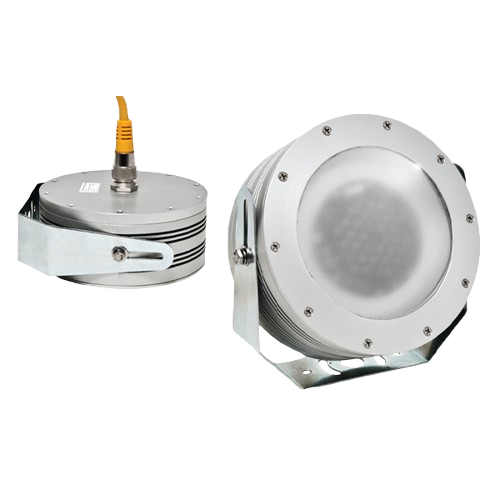

The XCANLED Series is a high-performance, compact LED floodlight engineered for hazardous and industrial environments. Delivering approximately 2,000 lumens, this fixture is ideal for localized and perimeter lighting in oil and gas, marine, utility, and manufacturing sectors. It is available with wide (100°) and narrow (30°) beam patterns, making it suitable for both general illumination and spot lighting tasks. Built with heavy-duty materials and IP66 protection, the XCANLED is certified for Class I Division 2 hazardous locations and operates in extreme temperatures from −40 °C to +45 °C. With multiple voltage input options—ranging from 12/24 VDC to 480 VAC—the fixture offers installation flexibility for both remote and on-grid systems.
Features
- Robust construction suitable for indoor and outdoor applications
- Available with a 6ft pre-wired or quick disconnect cable
- Available with 100° flood or 30° narrow beam profile
- Designed for use in harsh and hazardous locations
- Thermally managed for maximum longevity
| Feature | Specification |
|---|---|
| Lumen Output | ~2,000 lumens |
| Beam Options | 100° flood / 30° narrow |
| Input Voltage | 12–24 V DC, 120–277 VAC, 347–480 VAC |
| Certifications | UL 2108, CSA C22.2 No.250.0, Class I Div 2 (ABCD, T3) |
| Ingress Protection | IP66 |
| Operating Temp | −40 °C to +45 °C |
| Weight | ~2.05 kg / 4.5 lbs |
| Mounting / Cable | 6 ft pre‑wired lead or quick disconnect, ¾″ NPT entry |
