Description
Designed for merchant and large vessels requiring Class A AIS compliance, the XA-198BD from XINUO features a corrosion-resistant aluminium shell host unit, and a dedicated display unit (7″ standard) for bridge installation. It supports the global AIS VHF channels (161.975 MHz & 162.025 MHz) and a DSC receiver on 156.525 MHz, allowing full ship-to-ship and ship-to-shore AIS communication. Beyond basic AIS functionality, the system incorporates a high-precision BDS GNSS receiver, offering <10 cm horizontal accuracy in open sky conditions.
◆ Passed the China Classification Society CCS type approval.

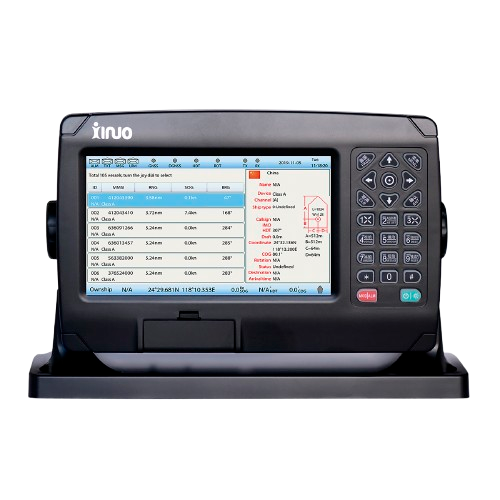

◆ 7-inch display unit and host, supports countertop and embedded installation.
◆ Support BDS high precision positioning.
◆ Install in perfect AIS function, according to the ship navigation state intelligent switch transmission power.
◆ The AIS radar page intuitively shows the distribution of ships, and provides many types statistical data to reference.
◆ Record historical destination information for quickly select.
◆ Intelligent CPA alarm calculation mechanism can avoid outdated and ineffective alarms.
Class A automatic identification system is composed of host and the display unit. The host adopts pure aluminum shell design that is corrosion-resistant and durable. It built-in Class A AIS module and has perfect AIS function. It has abundant interface that support to connect external electronic chart system, radar, GNSS chart plotter, etc.
Technical Specifications
| Transponder Unit | XA-198BD | |
| Frequency | 156.025MHz ~ 162.025MHz | |
| Bandwidth | 25kHz | |
| Modulation | GMSK / FM | |
| Data Rate | 9,600 bps | |
| Number of AIS transmitter | 1 | |
| Number of AIS Receiver | 2（AIS1, AIS2） | |
| Number of DSC Receiver | 1 | |
| DSC Receiver | CH70 (156.525 MHZ) | |
| Rx1(default) | AIS1(161.975MHz) | |
| Rx2(default) | AIS2(162.025MHz) | |
| Output Power | 1W/12.5W | |
| Display Unit | ||
| Display Type | Color TFT LCD | |
| Size | 7 inch | |
| Resolution | 800 × 480 pixels (WVGA) | |
| Brightness | 500cd/㎡ | |
| Language | English, Simplified Chinese, Traditional Chinese, Vietnamese, Turkish, Thai | |
| Interface | Sensor1~3 | Input: DTM,GNS,RMC,VBW,HDT,HDG,ROT,GBS,GLL,VTG |
| External Display/Pilot | Input. ABM,ABK,ACA,ACK,AIR,BBM,SSD,VSD,AIQ,LRF Output. AIQ,ABK,ACA,SSD,VDM,VDO,VSD,TXT,ALR,LRI,LRF,AIQ |
|
| Long Range | Input. LRI,LRF Output. LRF,LR1,LR2,LR3 | |
| WIFI | 802.11 b/g/n | |
| Power Supply | DC18V~36V | |
| Power Consumption | 18W or less （DC24V） | |
| Enviromental | ||
| Storage Temperature | -20℃~+60℃ | |
| Working Temperature | -15℃~+55℃ | |
| Waterproof | MKD, IP65. Transponder, IP22 | |
