Description

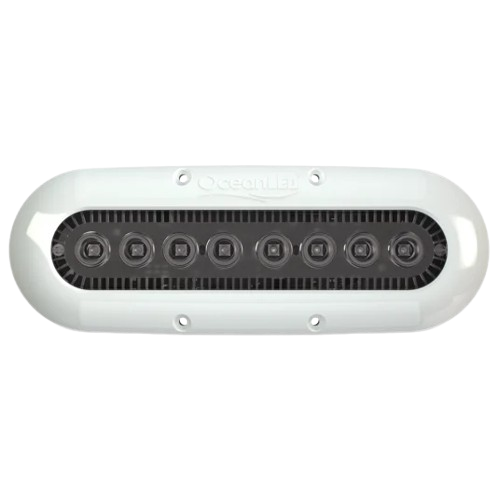

The OceanLED X-Series X8 sets a new benchmark in marine lighting, combining exceptional brightness with rugged reliability and effortless installation. With up to 2,300 fixture lumens and advanced underwater optics (60° circular beam), the X8 illuminates broad underwater areas with class-leading clarity.
Constructed from chemically-resistant optical polymer, the X8’s moulded single-piece Grilamid lens and integrated driver deliver premium durability with minimal intrusion, only a 12.5 mm (½″) cable-entry hole is required for surface mounting. Rated IP69K, it withstands high-pressure washdowns, salt spray and harsh marine conditions.
Choose from standard Ultra White or Midnight Blue output, or opt for full RGBW colour models with smart control via switch or DMX/ smartphone app to create custom lighting moods, animations or fish-attract modes. The X8 also includes Fish-Strobe mode and active thermal control to safeguard performance over time.
Product features:
- Up to 2,300 Fixture Lumens
- Signature Underwater Optics
- Ultra Reliable
- Easy Install
- Built-In Driver
- No Hassle Warranty
- IP69k Certified
Technical Specifications
-
Light Output: Up to 2,300 fixture lumens
-
Beam Angle / Optics: 60° circular beam
-
Operating Voltage: 9–32 V DC
-
Current Draw:
-
~1.65 A @ 12 V
-
~0.75 A @ 24 V
-
-
Ingress Protection: IP69K (waterproof, saltwater & high-pressure resistant)
-
Mounting / Physical:
-
Surface mount design
-
Standard cable length: 3 m
-
Cable entry hole: 12.5 mm (½″)
-
Weight: ~600 g (1.32 lbs)
-
Housing: Grilamid single-piece lens / chemically resistant optical polymer
-
