Description

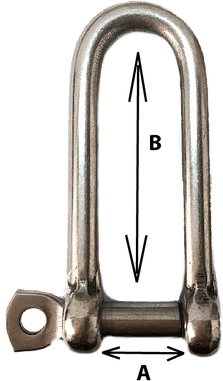

Gloma Nautica Straight Shackles

Gloma Nautica’s Straight Shackles are the go-to choice for marine professionals and industrial users demanding unmatched reliability and durability. Crafted from high-grade AISI 316 stainless steel, these shackles combine superior corrosion resistance with robust structural integrity, making them ideal for challenging offshore and coastal environments.

Key Features & Benefits:

• Premium Construction
  Forged from AISI 316 stainless steel, these shackles offer excellent resistance to rust, pitting, and saltwater corrosion—making them perfect for marine settings.

• Simple, Secure Design
  The straight or “D” shackle design features a straightforward pin closure, ideal for linear load alignment. This design enhances safety by minimizing lateral stress, resulting in consistent performance under heavy loads.

• High Load Capacities
  Each shackle size—from 6 mm up to 14 mm diameter—has been rigorously tested and rated with both Working Load Limit (WLL) and safety-breaking thresholds. For instance, the 10 mm shackle withstands 3,800 kg WLL and breaks beyond 7,500 kg.

• Versatile Size Range
  With diameters of 6, 8, 10, 12, and 14 mm, Gloma Nautica provides options to suit tasks ranging from light dockside rigging to heavy-duty anchoring operations.

• Compact & Light
  Despite their strength, these shackles are lightweight and compact. For example, a bag of 10 pieces of the 12 mm size weighs only 1.9 kg, minimizing handling strain and shipping increase.

• Industrial Reliability
  Designed to meet rigorous marine and industrial standards, these shackles guarantee operational safety and longevity—even in demanding environments.

Product Specifications (Straight Shackles):

• Ref. 103 – Ø 6 mm, A=12 mm, B=19 mm, WLL 1,300 kg, Break 2,600 kg (pack of 50; bag weight 1.2 kg)

• Ref. 104 – Ø 8 mm, A=16 mm, B=30 mm, WLL 2,300 kg, Break 4,700 kg (pack of 50; 3.0 kg bag)

• Ref. 105 – Ø 10 mm, A=20 mm, B=33 mm, WLL 3,800 kg, Break 7,500 kg (pack of 25; 2.75 kg bag)

• Ref. 106 – Ø 12 mm, A=24 mm, B=40 mm, WLL 5,500 kg, Break 10,900 kg (bag of 10; 1.9 kg)

• Ref. 107 – Ø 14 mm, A=28 mm, B=45 mm, WLL 6,300 kg, Break 12,600 kg (bag of 10; 3.04 kg) glomanautica.com+2glomanautica.com+2glomanautica.com+2glomanautica.com

Gloma Nautica’s commitment to quality ensures each batch undergoes strict inspections, guaranteeing parts free of machining defects and that meet expected working limits. These shackles are a staple in rigging, towing, towing, anchoring, lifting, and mooring setups across the globe.

Applications:
Ideal for sailboats, commercial vessels, deck mooring lines, industrial lifting systems, ground anchor points, and any scenario where maximum tensile strength and corrosion durability are essential.
