Description

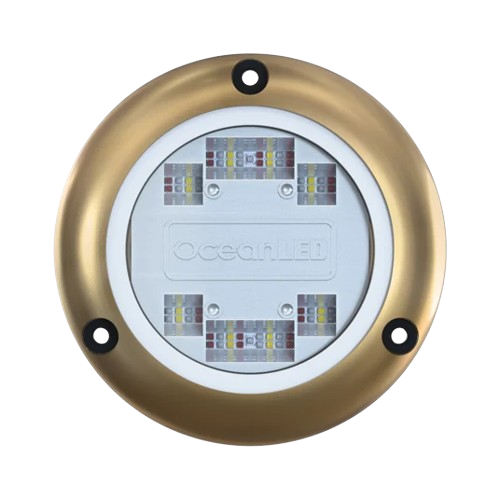

The Sport Series from OceanLED is a premium surface-mount underwater light engineered for performance, durability and ease of installation on sport fishing vessels, leisure craft and wake-sport boats. Crafted from marine-grade AB2 aluminium bronze and rigorously sealed to IP69K for ultimate water-ingress protection, this light delivers up to 5,000 fixture lumens of output through precision-designed optics. These optics feature a wide 90° top (surface) beam combined with a narrow ~20° side beam, providing deep water penetration and a broad illuminated field without wastage. Installation is simplified with a single 12.5 mm (0.5”) hull cable feed-through hole and single-wire interface, making retrofit or new-build mounting straightforward. Built-in active thermal control safeguards the LEDs under heavy usage, while a durable Tritonium coating on the lens keeps marine growth manageable with just a wipe-clean finish. Compatible with 9-32 V DC systems and designed for boats up to approximately 20 m (65 ft) in length, the Sport Series offers high-end lighting capability with minimal hassle.
Product features:
- Up to 5,000 Fixture Lumens
- Advanced Underwater Optics
- Ultra Reliable
- Easy Install
- Built-In Driver
- No Hassle Warranty
- IP69K Certification
Technical Specifications
-
Fixture lumens: up to 5,000 (depending on variant)
-
Operating voltage: 9–32 V DC
-
Current draw (typical maximum):
-
At 12 V DC: approx. 5.5 A
-
At 24 V DC: approx. 2.4 A
-
-
Beam angle: ~90° top (surface) beam / ~20° side (water) beam
-
Material: AB2 marine-grade aluminium bronze housing
-
Ingress protection: IP69K certified
-
Hole cut-out for cable entry: 12.5 mm (0.5”)
-
Weight: approx. 700 g
-
Standard cable length: 2 m (or 3 m, depending on variant)
-
Recommended installation depth (top of fixture): 20-25 cm (8-10”) below waterline
