Description

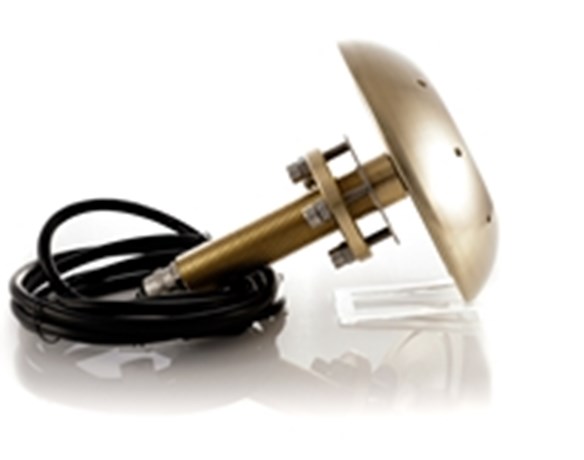

• Thru-hull.
• Formidable performance with the added security of a thru-hull stem fitting.
• A radical departure from conventional sealing methods the Manta Ray has an unique rear cassette design with multiple sealing system.
• Machined from Billet AB2 Marine grade Bronze.
• Suitable for Transom mounting on all hull types.
• Built in driver technology with active thermal rollback.
• RINA Type approval
• 12V version also available (price on application)

Specifications

• Suitable transom mounting
• Thru-Hull, requires 30mm hole cut out
• Recommended for boats upto 40m+ / 130+ft
• Max Lamp Lumens 18,000 / Fixture Lumens 16,000
• Typical LED life expectancy 50,000 + hours
• Voltage 24v, Power Draw 5.1A
• For Mains Voltage systems purchase our 110/240V PSU
• Over voltage,current,reverse polarity,active thermal protection
• Fixture profile 32mm
• Fixture diameter 140mm
• Fixture Length 208.5mm
• Lens: optical grade 8mm Boroscilicate glass,65 degree beam angle
• Body AB2 Bronze throughout
• Weight 2.7kg/5.94lbs
• 2 years warranty
• Delrin Isolation Sleeve must be used if fitting lights to Steel or Aluminium hulls
