Description

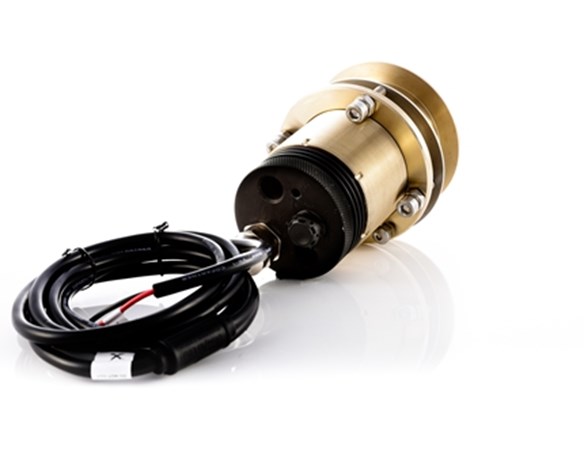

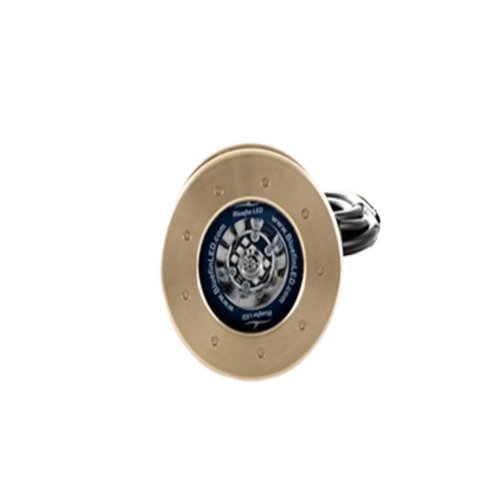

Thru Hull Interchangeable LED Underwater Boat Light

• The Ultra compact design of the Mako M12 Interchangeable Flush Mount offers unrivalled performance producing 7,100 Fixture Lumens with almost unlimited mounting options thanks to the low profile bezel and short body design. Thru Hull mounting provides a safe and secure fixing with the added benefit of a removable LED cartridge that can be serviced or upgraded from inside the hull eliminating the need to haul the boat.
• Simple installation thanks to our inbuilt driver technology, just two wires to connect saving time and money in labour fees, reverse polarity protection with active thermal trip, Guard X protective coating applied to the lens prevents marine growth build up.
• Suitable for transom, side and under hull mounting on all types of hull.
• RINA Type approval

Specifications

• Suitable for transom, side and under hull mounting
• Thru-Hull interchangeable requires 65mm entry hole
• Recommended for boats upto 20m/65ft
• Max Lamp Lumens 11,000 / Fixture Lumens 7,100
• Typical LED life expectancy 50,000 + hours
• Voltage 12 or 24v, Power Draw 5.1A@12v / 2.6A@24v
• For Mains voltage systems purchase our 110/240V PSU
• Over voltage,current,reverse polarity,active thermal trip protection
• Fixture profile 4mm
• Fixture diameter 85mm
• Fixture Length 110mm
• Lens: optical grade 9mm Boroscilicate glass,60 degree beam angle
• Body AB2 Bronze throughout,Aluminium removeable cartridge
• Weight 1kg/2.2lbs
• 2 years warranty
• Delin Isolation Sleeve kits must be used if fitting into Steel / Aluminium or Carbon hulls
