Description

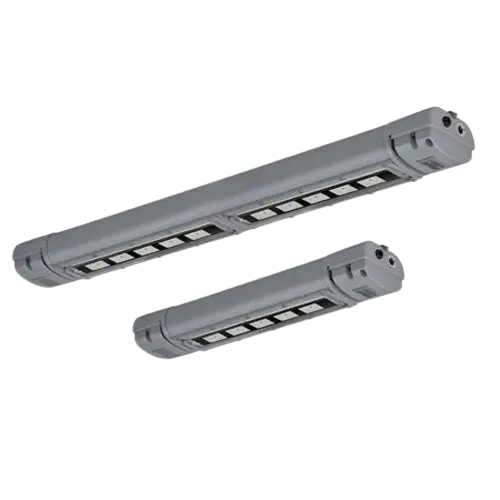

The Nemalux RL Series is a rugged, industrial-grade linear LED fixture designed for use in hazardous locations and harsh environments. Engineered as a direct replacement for traditional fluorescent lighting, it provides high-performance illumination, exceptional durability, and compliance with global hazardous area certifications.
Available in single (RL-1) and dual (RL-2) lengths, the RL Series delivers energy-efficient lighting with output ranging from 3,065 to 12,260 lumens, making it suitable for applications in oil and gas, marine, mining, manufacturing, and other heavy industrial sectors.
RL linear light can replace conventional fluorescent fittings. The fixture has extreme levels of durability for long lasting use. With a Zone 1/21 & Zone 2/22, it can thrive in hazardous area installations.
Features:
- Has the same dimensions, installation points, and cable entries as traditional fluorescent fittings. Making it an easy replacement.
- LED and PSU modules are easily accessible for straightforward maintenance and inspection.
- Self-testing emergency battery providing up to 3 hours back-up.
- A unique modular design makes maintenance quick and easy.
Specifications
| Feature | Details |
|---|---|
| Lumen Output | 3,065 – 12,260 lumens |
| Form Factor | Linear LED fixture (RL‑1: 30″ × 6.9″ × 4.6″; RL‑2: 49.3″ × 6.9″ × 4.6″) |
| Ease of Maintenance | Modular LED and PSU design for easy access and servicing |
| Input Voltage | 110–254 VAC or 18–69 VDC options |
| Ingress Protection | IP66 / IP67 |
| Operating Temperature | –40 °C to +60 °C (emergency models: –20 °C to +50 °C) |
| Construction | Marine-grade aluminium with stainless steel brackets and fasteners |
| Emergency Option | Yes – self-testing battery providing up to 3 h at 25% output, with tri-colour LED indicator |
