Description

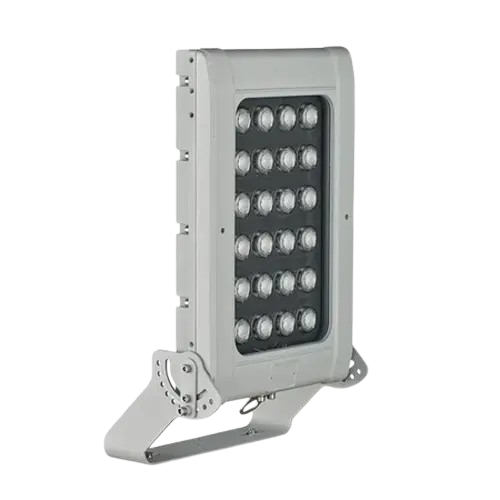

The RH Series by Nemalux is a robust, high-output LED floodlight tailored for large-scale industrial and hazardous environments such as oil rigs, grain storage areas, and harsh outdoor locations. Built with marine-grade aluminium and designed to withstand extreme conditions, this luminaire delivers between 20,000 and 34,000 lumens and is designed to replace traditional 400 W discharge fixtures, offering extended operational life exceeding 10 years.
The RH high power floodlight illuminates large open spaces within hazardous locations. Available with different outputs from 20,000 to 34,000 lumens. This fixture uses LED technology that is field proven to ensure a 10 year+ projected lifetime.
Features:
- Wide operating temperature for challenging conditions. Robust and durable construction from marine grade aluminium.
- The modular design allows to mount the PSU remotely and gives easy access to key components.
- Multiple beam pattern options to light up large open areas such as oil rigs and grain stores.
- DALI 2.0 dimmable as standard for precise and flexible control of lighting assets.
- Replaces traditional discharge light sources up to 400W.
Specifications
| Feature | Specification |
|---|---|
| Lumen Output | 20,000 – 34,000 lumens |
| Housing & Construction | Marine-grade aluminium; modular with rear PSU access |
| Beam Options | Multiple patterns—ideal for wide spaces |
| Dimming | DALI 2.0 |
| Ingress Protection | IP66 |
| Operating Temperature | –50 °C to +50 °C |
| Voltage Input | AC: 110–254 VAC (EU: 150–264 VAC) |
| Weight | 23.5 kg (51.8 lbs) (excluding mounts) |
| Dimensions (L × W × H) | 13.9″ × 21.1″ × 6.8″ (excluding mounts) |
| Certifications | ATEX/IECEx for Zone 1/21, Zone 2/22, and dust-only Zone 21 |
