RA106GRPPB

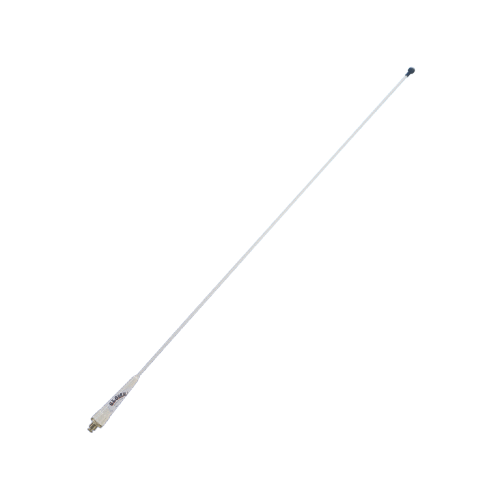

The Glomex RA106GRPPB is a 0.9 m (35″) VHF marine antenna tailored for motorboats and RIBs. It features a glossy fiberglass whip coated in UV-protective white polyurethane, delivers 3 dB gain, covers the 156–162 MHz marine band, and utilizes a waterproof, solderless RA106 connector for hassle-free installation.
Description
The RA106 series antennas are reliable and solid, ideal for any type of boat, whether a sailboat or a motorboat and for tenders as well (version RIB).
RA106GRPPB is a VHF antenna designed for motorboats with a fibreglass rod which takes advantage of white polyurethane paint, assuring a total protection of the antennas’ inside copper components. It’s equipped with Glomex “RA106 solderless” special connector, waterproof and solderless, easing the installation.
SUPPLIED ACCESSORIES:
PL259 male nichel-plated CONNECTOR (code RA132)
PVC rubber protection for connector (code RA138)
NYLON FEED-THRU (code RA140)
STAINLESS STEEL ADAPTOR. STANDARD 1″”X14 THREAD (code RA106ADAPT1X14)
Specifications
| FREQUENCY RANGE | 156/162 MHz |
| GAIN AVERAGE | 3dB |
| IMPEDANCE | 50 ohms |
| POLARIZATION | Vertical |
| SWR | ≤ 1,3 at 156,8 MHz |
| MAX IMPUT POWER | 100 W |
| DC GROUND | yes |
| LENGHT | 1m/3′ |
| WEIGHT | 900mm/35” |
| TERMINATION | RA106 solderless connector |
Additional information
| Brand | Glomex |
|---|
