Platform Davit – Space-Saving, Heavy-Duty Launching System by CMEC FJCN

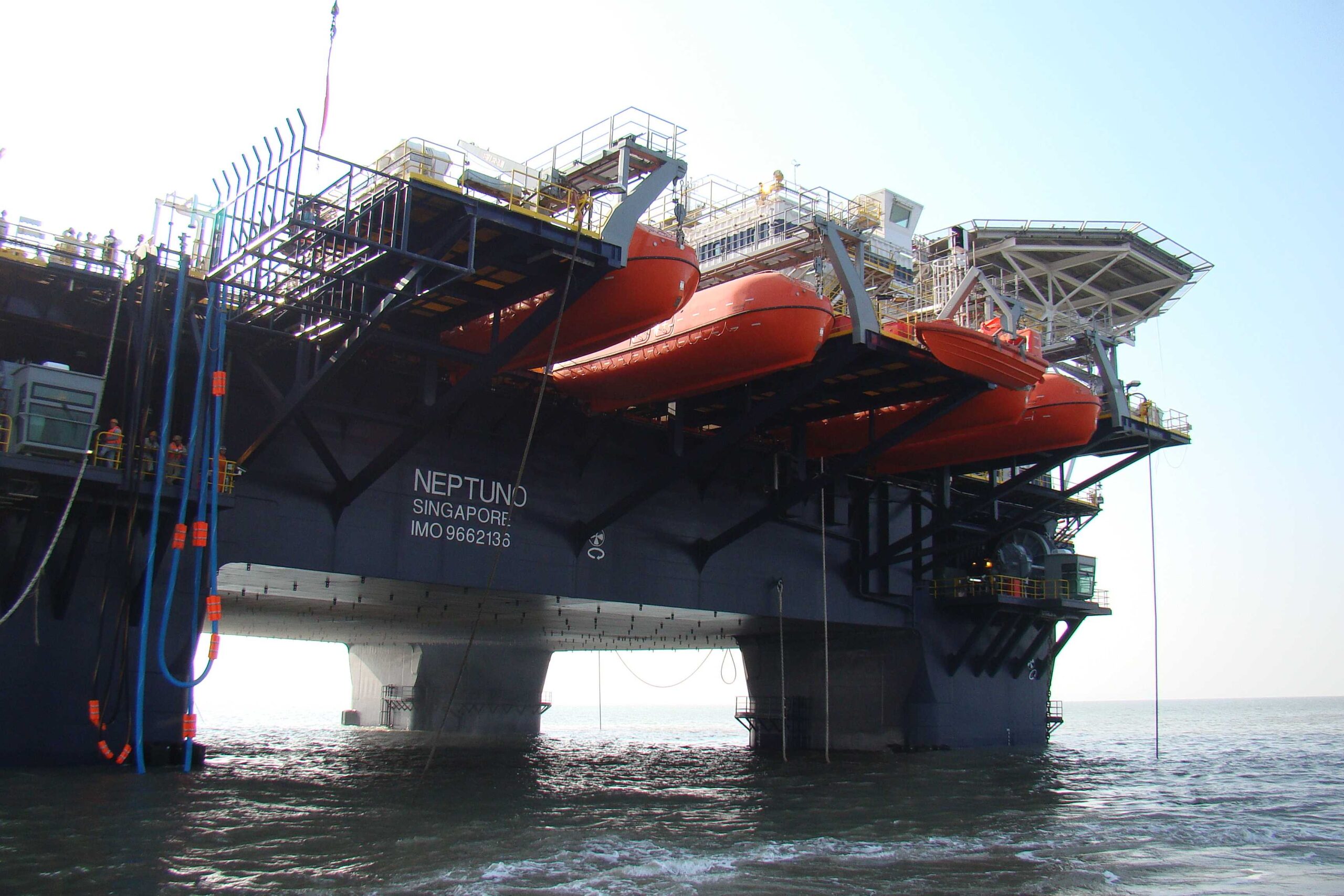

The Platform Davit by CMEC FJCN is a specialized launching appliance developed for lifeboats and rescue boats stationed on fixed offshore installations, jack-up rigs, and marine platforms. It delivers exceptional performance in emergency lifeboat deployment, offering a compact design that conserves deck space while supporting reliable, gravity-assisted launching.

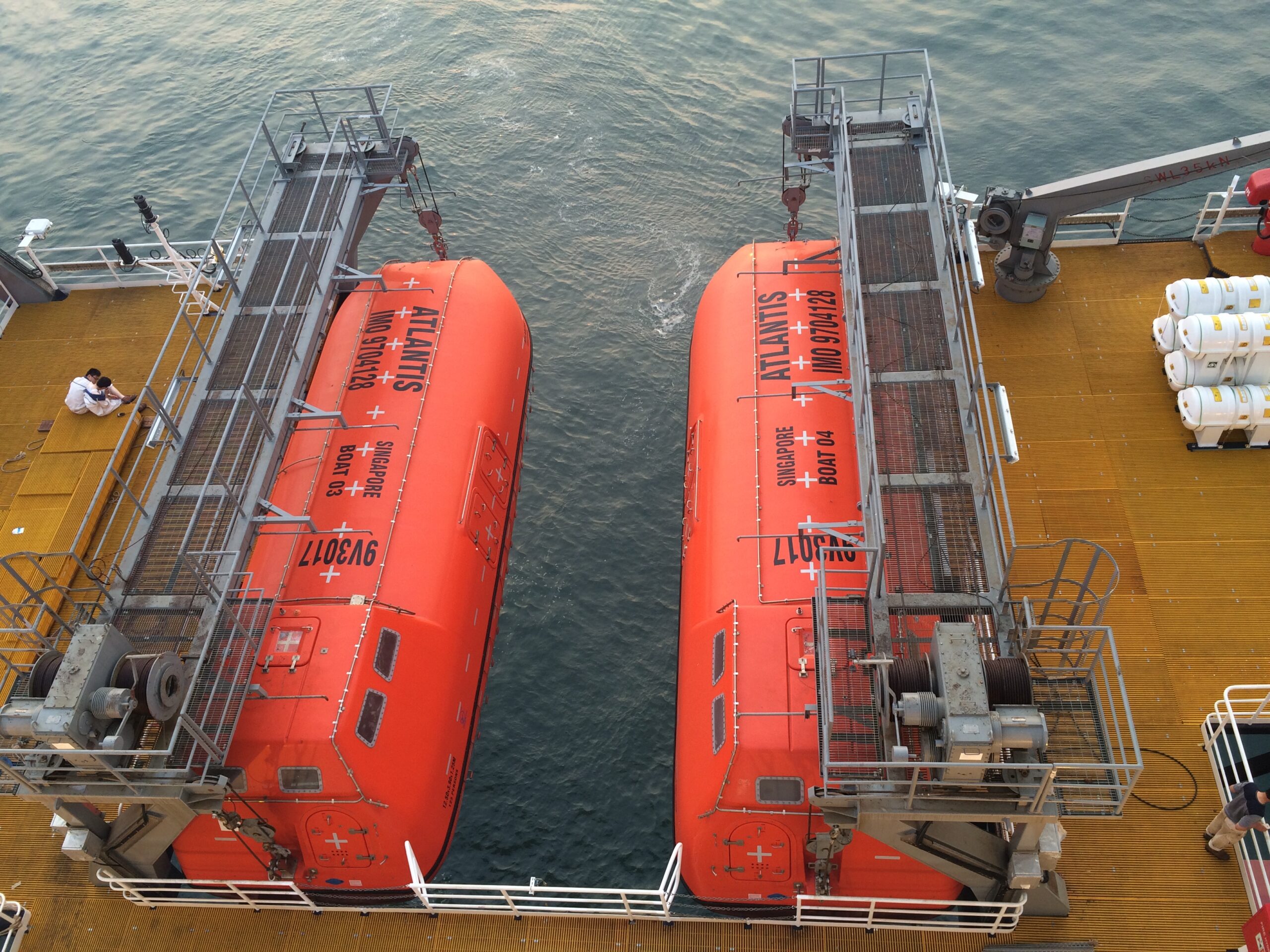

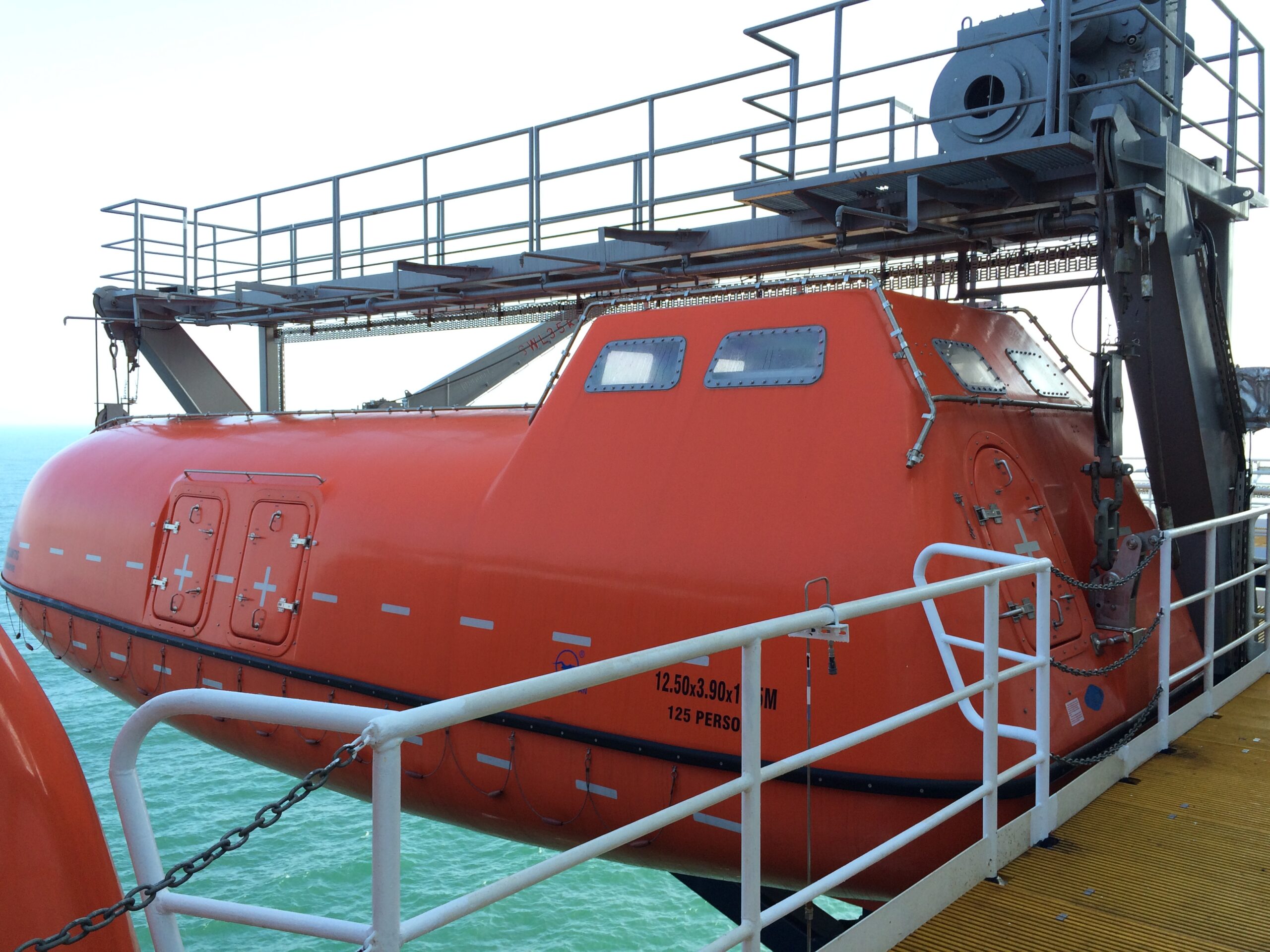

This davit system is permanently installed on the edge of a platform and designed to swing the lifeboat outboard before lowering it directly into the sea via a gravity or hydraulic-assisted winch. It provides a stable, durable structure that can endure harsh offshore conditions, including high humidity, salt spray, wind loads, and temperature extremes.

Key Features and Benefits:

• Compact and fixed installation – optimized for offshore platforms

• Gravity or hydraulic winch system – controlled and safe boat lowering

• Custom slewing arm or stationary frame depending on application

• Integrated winch and rope drum for smooth hoisting and retrieval

• Manual operation option – ensures functionality during power loss

• Sturdy support frame with corrosion-resistant marine-grade coating

• Suitable for all types of lifeboats and rescue boats

CMEC FJCN’s Platform Davit supports safe and efficient crew evacuation in compliance with SOLAS, IMO, and LSA Code. The system includes all vital components: luffing or fixed arms, launching winch, cradle support, wire rope, hydraulic control valves, and emergency manual release system. Designed for harsh sea environments, this davit ensures uninterrupted evacuation capability even under critical conditions.

Technical Specifications:

• Working Load Capacity: 15 – 40 kN

• Lowering Speed: 0.3 – 1.0 m/s (adjustable by load)

• Construction Material: Marine-grade structural steel or stainless steel

• Winch Type: Gravity/self-weight or hydraulic-powered

• Control Mode: Manual, hydraulic, or electric (optional)

• Coating: Epoxy zinc-rich primer with polyurethane marine topcoat

• Certifications: DNV, BV, ABS, CCS, LR, NK

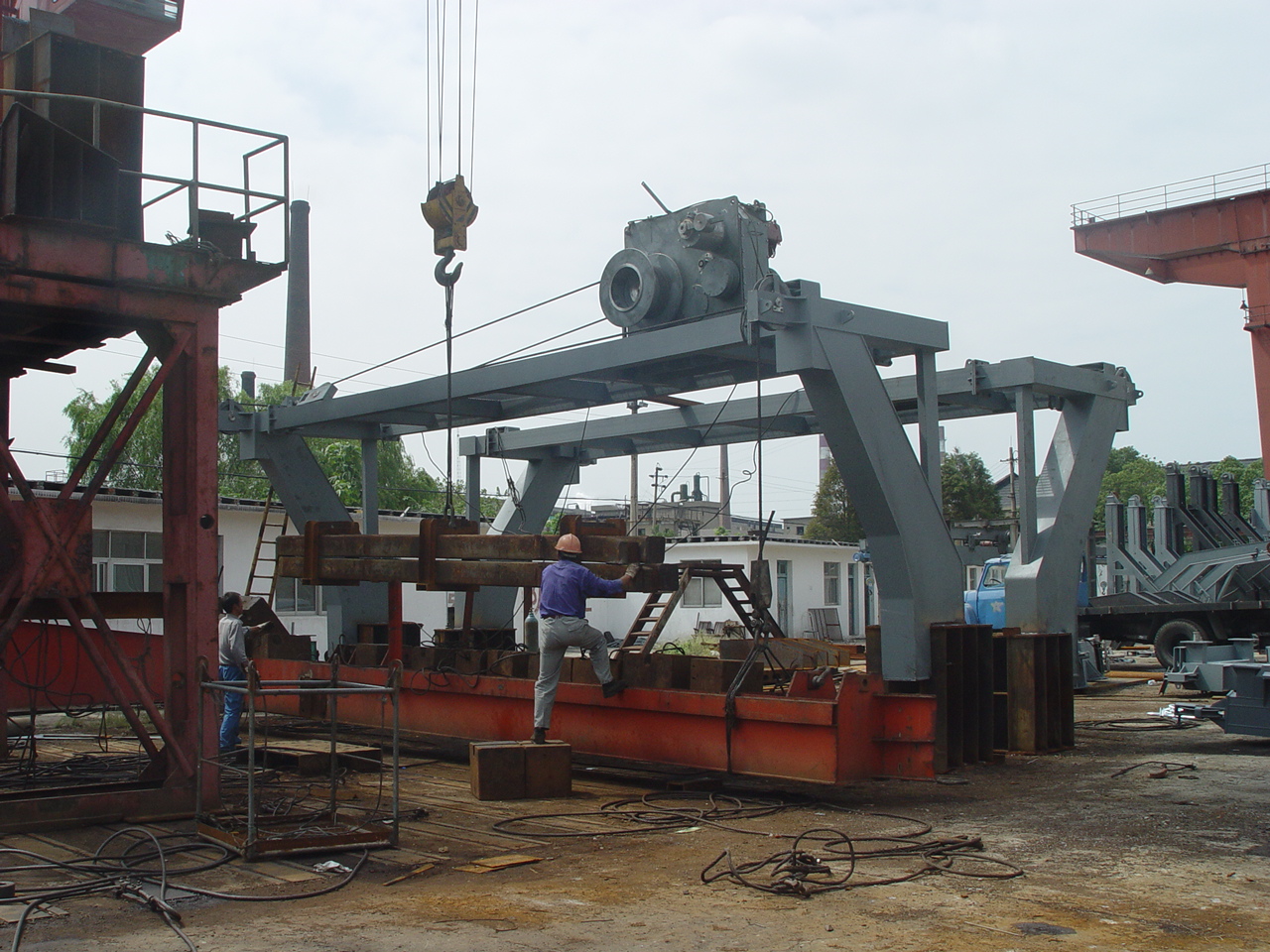

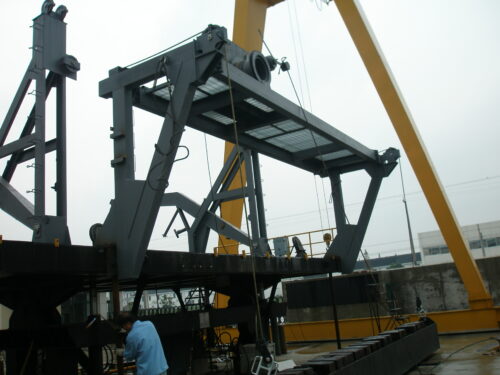

Designed for long-term use, the Platform Davit is factory-tested to simulate emergency operations and full-load launching. Its weatherproof structure and maintenance-friendly configuration make it a dependable solution for offshore evacuation needs. It can be tailored for single-arm or twin-arm configurations, depending on the platform layout and lifeboat size.

CMEC FJCN offers installation supervision, on-site commissioning, and crew training to ensure that the davit system is correctly set up and operated per international safety regulations. Spare parts, technical manuals, and global support are available for long-term reliability.

Whether for oil rigs, wind farms, or gas platforms, CMEC FJCN’s Platform Davit provides the stability, safety, and precision required for offshore evacuation systems.
