Description

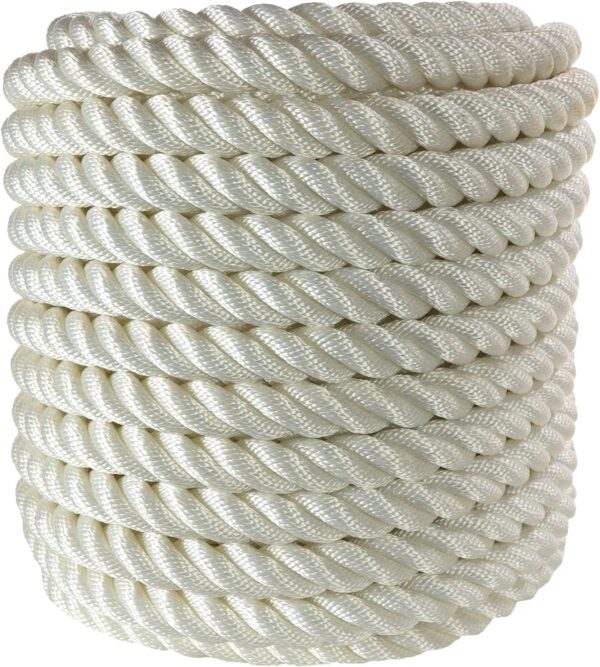

Nylon 3-Strand Rope
This is a rope made by twisting three strands of nylon fibers together in a traditional “laid” construction. This type of rope is renowned for its high strength, elasticity (shock absorption), and resistance to abrasion and UV—making it a standard choice in marine, industrial, and utility applications.
🔹 Structure and Construction:
-
Three-Strand (Laid) Design:
-
The rope consists of three twisted strands.
-
Each strand is made of tightly twisted nylon yarns.
-
The strands are then twisted together in a right-hand or left-hand lay (usually right-hand).
-
-
Construction Type:
-
Known as “hard laid” or “soft laid”:
-
Hard laid = stiffer, more durable under heavy load.
-
Soft laid = more flexible, easier to handle and splice.
-
-
🔹 Material – Nylon:
-
A synthetic polyamide fiber known for:
-
High tensile strength
-
Excellent elasticity
-
Good abrasion resistance
-
Chemical resistance (to oils, most fuels, mildew, and rot)
-
Excellent shock load absorption
-
🔹 Key Physical Properties:
| Property | Description |
|---|---|
| Material | Nylon (polyamide) |
| Construction | 3-strand twisted |
| Strength | Very high; one of the strongest rope fibers |
| Elasticity | High (stretches up to 20–40% before breaking) |
| Shock Absorption | Excellent; absorbs dynamic loads smoothly |
| Abrasion Resistance | Very good |
| UV Resistance | Good (but degrades more over time than polyester) |
| Water Absorption | High (~6–10%) – causes strength loss when wet |
| Melting Point | ~215°C (419°F) |
| Buoyancy | Sinks in water (density ~1.14 g/cm³) |
| Knot Holding | Good, though stretch can cause slippage under load |
🔹 Advantages:
-
Superior elasticity makes it ideal for applications with variable or shock loading (e.g., mooring, towing).
-
Durable and strong, even under abrasion or rugged use.
-
Handles easily, flexible and soft (especially soft-laid versions).
-
Resistant to rot, mildew, oils, and many chemicals.
🔹 Common Applications:
| Use Case | Description |
|---|---|
| Marine & Boating | Dock lines, anchor lines, mooring lines (ideal for shock loads) |
| Industrial | Tow lines, lifting slings, winch lines |
| Rescue/Utility | Safety lines, dynamic loads |
| Construction | Hoisting, rigging (when elasticity is beneficial) |
| Recreational | Camping, tarps, towing equipment |
🔹 Comparison with Other Ropes:
| Feature | Nylon 3-Strand | Polyester 3-Strand | Polypropylene | Nylon Double Braid |
|---|---|---|---|---|
| Strength | Very High | High | Medium | Very High |
| Stretch | High | Low | High | Medium |
| Abrasion Res. | Good | Excellent | Fair | Excellent |
| UV Resistance | Good | Excellent | Fair | Good |
| Floats? | No | No | Yes | No |
| Shock Load | Excellent | Fair | Good | Good |
