Description

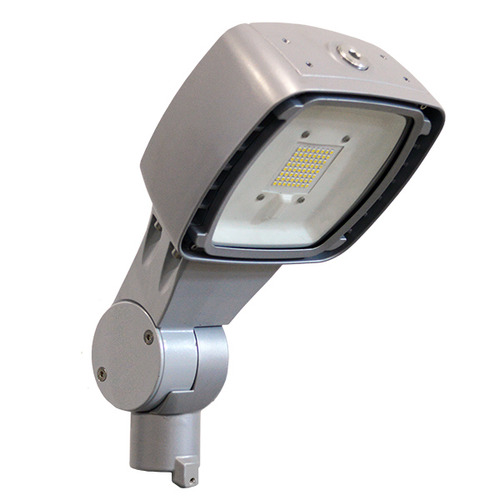

The Nemalux JR Series is a rugged, compact LED luminaire engineered for hazardous and industrial environments. With light output ranging from 2,000 to 5,000 lumens, this fixture offers multiple beam patterns and mounting options to suit various applications such as walkways, stairwells, machine lighting, and confined spaces. Certified for Class I Division 2, Class II & III hazardous locations and rated up to IP68, the JR Series is constructed from marine-grade aluminum and powder-coated for maximum durability. Its modular design allows field-replacement of optics, driver, and LED engine (except the sealed IP68 version), making it a reliable and serviceable lighting solution for challenging environments including oil & gas, wastewater, mining, and marine facilities.

Features

• Designed for marine, harsh, and hazardous location use
• Compact and multi-functional luminaire for challenging applications
• Thermal separation of LED and power supply allows max ambient temperatures of up to +60°C
• Marine grade copper-free aluminum housing with multi-layer powder coated finish
• Approved for through-wiring of multiple luminaires on a single circuit
• Provided with standard glass or special order polycarbonate* lens
• Available in two lumen output models with several beam profiles
• 3 x 3/4” NPT Entrees & 0-10V dimmable

Technical Specs

Voltage: AC: 120-277 VAC | HV: 347 VAC** (50/60 Hz)
Ingress Protection: IP66 | IP67 | IP68**
Temp Range: -40°C to +60°C
Certification: UL 844; UL 1598; UL 1598A; UL 8750;
CSA C22.2 No. 250.0-08, CSA C22.2 No. 250.13-17;
Class I, Division 2 Groups ABCD, T3;
Class II, Division 1 & Division 2 Groups FG, T3
Class III, Division 1 & Division 2
Class 1, Zone 2, Group IIC | Zone 22
IEC 60529, C22.2
