Description

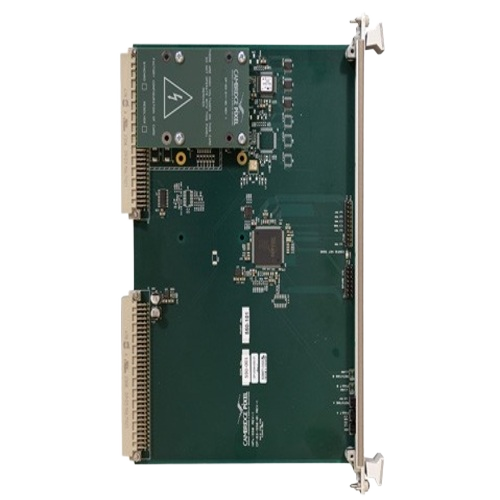

The HPx-550 VME Synchro/Resolver Converter Card is a high-performance VME-based converter card designed to interface analogue synchro and resolver signals with modern digital radar or navigation systems. It accurately converts angular position data from synchros or resolvers into digital outputs suitable for networked or processor-based systems. This enables legacy angular sensors to integrate seamlessly with modern radar acquisition, display, and control applications.
The card supports multiple input channels with selectable signal ranges and configurable filtering. Its FPGA-based design ensures high-precision conversion and low-latency performance. The HPx‑550 is ideal for applications in naval, maritime, and defense systems where precise angle measurement is critical, including radar antenna positioning, ship navigation, and control systems. Full VME compatibility allows straightforward integration into existing system architectures.
Technical Specifications for HPx-550 VME Synchro/Resolver Converter Card
| Parameter | Specification |
|---|---|
| Form Factor | VME64 standard, 6U |
| Input Types | Synchro or Resolver inputs, selectable ranges |
| Number of Channels | Up to 2 independent channels |
| Angular Resolution | Sub-degree precision (configurable) |
| Conversion Method | FPGA-based real-time A-to-D conversion |
| Output Formats | Digital position data for processor/FPGA systems |
| Update Rate | High-speed conversion for low-latency applications |
| VME Interface | VME64 compliant, supports standard addressing modes |
| Filtering Options | Configurable analog/digital filters for noise reduction |
| Temperature Range | 0 °C to +55 °C operating |
| Software Support | Compatible with SPx software suite and board support libraries |
| Applications | Radar antenna positioning, ship navigation, motion control systems |
Features
-
- 115V or 26V reference voltage
- 90V or 11.8V signal voltage
- DC to 40kHz input frequency
- 3-wire synchro or 4-wire resolver input
- 5 to 120 rpm rotation rate
- 4096 ACPs per rotation
- Fully compatible with Cambridge Pixel’s HPx-250 (PMC) and HPx-450 (XMC) radar input cards
- Standard 6U VME form factor single slot card
- Power via VME P1 connector
- Signal I/O via VME P2 connector
- Converts synchro/resolver signals to ACP/ARP format azimuth signals
