Description

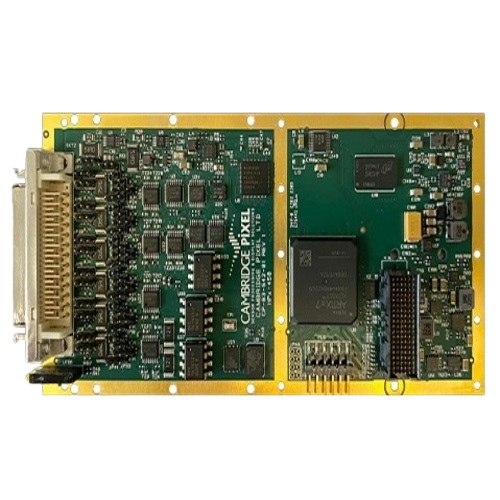

The HPx-450 XMC Radar Input Card is a high-performance XMC radar input card designed for demanding radar acquisition applications. It captures both analogue and digital radar signals and converts them into high-fidelity digital data for processing, display, or network distribution. With support for dual radar channels and high-speed XMC interfaces, the card enables low-latency data transfer and real-time processing, ideal for advanced multi-channel radar systems.
The HPx‑450 features FPGA-based processing for accurate capture, correlation, and pre-trigger compensation. It supports a wide range of radar signal types, including video, trigger, and azimuth (ACP/ARP or parallel). With configurable input termination and multiple output formats, it integrates seamlessly into legacy and modern radar systems. The card is compatible with the SPx software suite for radar display, tracking, and processing on both Windows and Linux platforms.
Technical Specifications of HPx-450 XMC Radar Input Card
| Parameter | Specification |
|---|---|
| Form Factor | XMC module (VITA 42 standard) |
| Number of Channels | 1 or 2 radar input channels |
| Sampling Rate | Up to 125 MHz for analogue inputs |
| A-to-D Resolution | 12-bit |
| Maximum Input Bandwidth | 60 MHz |
| Pulse Repetition Frequency (PRF) | Up to 16 kHz |
| Samples per Return (max) | Up to 64,000 |
| Returns per Scan | Up to 16,000 |
| Azimuth Inputs | ACP/ARP (RS422 or single-ended) + parallel azimuth |
| Trigger Inputs | RS422, single-ended, opto-isolated |
| Video Termination Options | 50 Ω, 75 Ω, or high impedance |
| General Purpose I/O | 3 lines (configurable as input or output) |
| Built-in Test | Onboard test pattern generator |
| FPGA Processing | Real-time data capture, correlation, pre-trigger compensation |
| Software Support | SPx Development Library, Radar View, SPx Server |
| Operating Temperature | 0 °C to +55 °C |
| Supported Radar Types | Wide range of commercial and specialist radars |
Features
-
Dual-channel radar input with high-fidelity analogue and digital support
-
125 MHz sampling with 12-bit A-to-D conversion for detailed radar return capture
-
FPGA-based real-time processing for low-latency, accurate data
-
Configurable input termination (50 Ω, 75 Ω, high impedance)
-
Supports ACP/ARP and parallel azimuth signals for broad compatibility
-
Onboard test pattern generator for diagnostics and calibration
-
General-purpose I/O for system integration
-
Compatible with SPx software suite for radar display, tracking, and processing
-
Integrates seamlessly with legacy and modern radar networks
-
Ideal for high-resolution, multi-channel radar systems
