HPx-346 Analogue Radar to Network Converter

Brands: Cambridge Pixel

The HPx-346 is a versatile, energy-efficient radar converter that bridges legacy analogue radar systems with modern network infrastructure. By digitising radar video and other signals and distributing them over Ethernet in standard formats (e.g., ASTERIX CAT-240), it enables seamless integration of older radar hardware into contemporary display and processing systems. Its compact form factor, web-based control, and low power draw make it ideal for embedded, maritime, or constrained environments. Plus, with options for redundancy (the HPx-346D), it offers reliable networked radar output even for mission-critical applications.

Add to quote

📩 Request Quote via WhatsApp

Description
Reviews (0)

Description

The HPx-346 from Cambridge Pixel is a compact, low-power unit that captures analogue radar video (including trigger and azimuth signals) and converts it into a digital network stream. It digitizes the input at up to 100 MHz sampling, forming UDP packets for network distribution. The system supports lossless compression and open network standards, making it easy to integrate with modern radar display or processing systems.

The device is configurable via a built-in web interface, or through a programming API (C++, C#, Java) using the SPx Development Library enabling both monitoring and control.

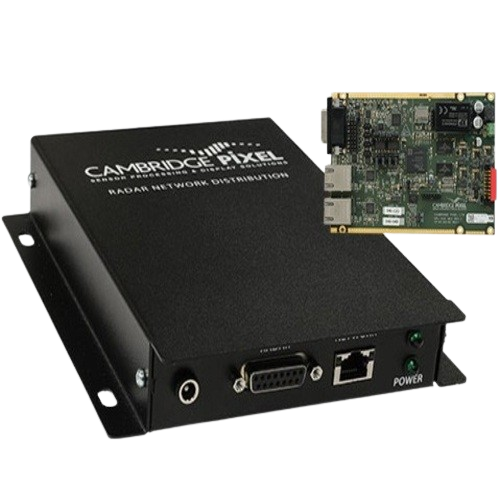

Form factor options include: standalone box, 19” rack-mount unit, or OEM card giving flexibility for different deployment environments.

Technical Specifications for HPx-346 Analogue Radar to Network Converter

Parameter	Specification
Signal Inputs	Analogue radar video, trigger, ACP/ARP (azimuth)
Input Signal Types	Single-ended, open collector, RS422 differential; voltages up to 60 V
Video Termination Options	50Ω, 75Ω, or high impedance
Sampling Rate	100 MHz
PRF (Pulse Repetition Frequency)	Up to 16 kHz
Scan Rate	Up to 120 RPM
Return Length	Up to 16,000 samples per return
Trigger / ACP / ARP Inputs	Configurable: RS422 differential or single-ended; opto-coupled for electrical isolation
General Purpose I/O	2 lines (configurable as input or output)
Network Output	1000BASE-T Ethernet (dual interface on HPx-346D variant)
Data Formats	ASTERIX CAT-240; raw or lossless compressed formats
Processing	Onboard ARM/FPGA, STC/FTC filtering, dynamic thresholding, sector blanking, azimuth offset
Power Consumption	9–36 V DC, peak < 5 W
Dimensions	~ 195 mm × 160 mm × 32 mm (for boxed unit)
Temperature Range	Operating: –15°C to +55°C; Storage: –40°C to +85°C
Compliance	EN60945 (environmental), EN55032, EN61000, EN55024; RoHS compliant
Control Interface	Web interface; open control protocol; SPx Development Library (C++ / C# / Java)

Features

Converts analogue radar video + trigger + azimuth into digital network stream.
High-sampling (100 MHz) analogue-to-digital conversion for precision.
Supports a wide range of input signal types and voltages (including RS422, single-ended, up to 60 V).
Web-based configuration interface for easy setup and control.
Lossless data compression — saving network bandwidth without quality loss.
Outputs in ASTERIX CAT-240, an open standard, enabling interoperability with standard radar software.
Onboard signal processing: STC/FTC filtering, dynamic thresholding, sector blanking, azimuth offset.
Test pattern generator for diagnostics and calibration.
Low power consumption (< 5 W) — can be used in power-constrained environments.
Multiple physical form-factors: boxed unit, 19″ rack, OEM card.
Redundant network version available (HPx-346D) — dual Ethernet outputs. Two general purpose I/O lines.
Fully supported by SPx software suite (Radar View, SPx Development Library).
