Description

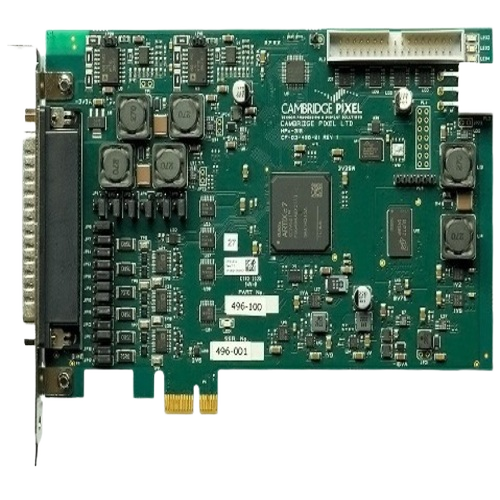

The HPx-310 Radar Signal Output Card is a high-performance radar signal output card designed by Cambridge Pixel to generate analogue radar video from digital sources. It allows seamless integration of processed radar data back into legacy radar displays, simulators, or networked radar systems. With precise timing and low-latency performance, the HPx‑310 can output radar video, trigger, and azimuth signals with high fidelity, supporting both single and dual-channel configurations.
Its FPGA-based design enables real-time generation of radar returns with configurable pulse lengths, amplitudes, and scan patterns. The card supports multiple output modes, including 50 Ω or 75 Ω terminated analogue video and standard azimuth formats. It is compatible with a wide variety of radar simulators, SPx software suites, and operational radar systems, making it ideal for testing, training, and system integration.
Technical Specifications for HPx-310 Radar Signal Output Card
| Parameter | Specification |
|---|---|
| Form Factor | PCI Express (x1 or x4, half-length, full-height) |
| Number of Channels | 1 or 2 radar outputs |
| Video Output | Analogue radar video, 50 Ω or 75 Ω termination |
| Pulse Repetition Frequency (PRF) | Configurable up to 16 kHz |
| Samples per Return | Up to 64,000 |
| Azimuth Outputs | ACP/ARP (RS422 or single-ended), parallel azimuth |
| Trigger Outputs | Configurable: RS422, single-ended, opto-isolated |
| Built-in Test | Test pattern generator for calibration and diagnostics |
| FPGA Processing | Real-time radar signal synthesis, pulse shaping, amplitude control |
| Data Transfer Rate | PCIe x4: up to 500 MB/s peak; sustained ~250 MB/s |
| Software Support | Board Support Library (C/C++), SPx Development Library, Radar View |
| Operating Temperature | 0 °C to +55 °C |
| General Purpose I/O | 3 lines configurable as input or output |
| Applications | Radar simulation, network redistribution, training, and testing |
Features
-
Generates high-fidelity analogue radar video from digital radar data
-
Supports single or dual radar channel output
-
Configurable PRF, pulse length, and amplitude for precise signal control
-
FPGA-based real-time processing for low-latency output
-
Compatible with SPx software for radar processing, tracking, and display
-
Supports ACP/ARP and parallel azimuth outputs
-
Low-latency trigger signals for accurate synchronization
-
Built-in test pattern generator for diagnostics and calibration
-
Flexible termination options (50 Ω or 75 Ω)
-
Compatible with PCIe x1 or x4 interfaces
-
Ideal for radar simulators, testing, and networked radar systems
