Description

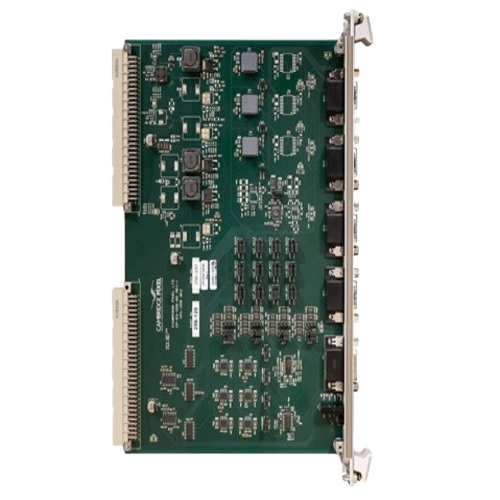

The HPx-256 VME Radar/TV Video Signal Splitter Card is a high-performance VME64 radar TV video signal splitter card engineered to distribute a single radar video input to multiple outputs without loss of signal quality. It is specifically designed for radar system applications where the same radar feed needs to be accessed by multiple displays, recorders, or processing units simultaneously.

The card accepts a standard analogue radar TV video input and provides up to four independent outputs, ensuring each connected system receives a high-fidelity replica of the original signal. Configurable output termination (50 Ω standard) preserves signal integrity and prevents reflections, making it suitable for professional radar environments where precision and reliability are critical.

Its VME form factor allows seamless integration into existing legacy or modern radar systems, supporting both operational radar setups and simulation or training systems. With robust electronics designed for continuous operation, the HPx‑256 ensures consistent performance in maritime, defense, or industrial applications where multiple systems must receive synchronized radar video data.

Technical Specifications for HPx-256 VME Radar/TV Video Signal Splitter Card

Features

• 6U VME form factor signal splitter card
• Operates either as a radar signal splitter card or as a TV video signal splitter card
• “Radar In” connector accepts a single set of radar input signals, comprising:
  • Video (50Ω, 75Ω or high impedance termination)
  • Trigger/sync, ACP, ARP, SHM (all signals either single-ended or differential RS-422)
• “TV In” connector accepts a single analogue TV video signal:
  • Composite SMPTE 170M (NTSC) or CCIR (PAL) format
  • 1V peak-to-peak, 75Ω termination
• Input signals are split to three sets of output signals
• On-card signal regeneration and video gain adjustment capabilities
