Description

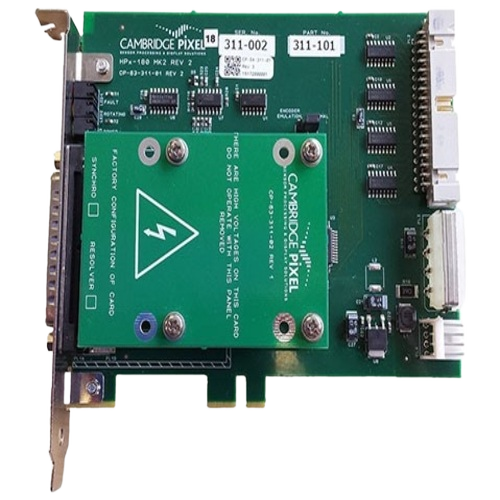

The HPx-180 PCI/PCIe Synchro-Resolver Card is a dedicated PCI/PCIe form-factor card that converts traditional angular position signals from synchros or resolvers into digital azimuth data for use by modern radar systems. It supports both 3-wire synchro and 4-wire resolver inputs, compares them using a reference voltage, and generates a 12-bit parallel azimuth output (data + strobe) over RS-422.
Additionally, the card can emulate ACP/ARP outputs, making it compatible with legacy radar input cards or older display systems that don’t support parallel azimuth. It is powered via a standard PC power connector rather than drawing data or power from the PCI bus, ensuring clean signal conversion. The front panel includes status LEDs for power, conversion error, and rotation, offering real-time diagnostics.
The HPx-180 is ideal for systems needing precise positioning feedback (e.g., radar antenna control) and for bridging legacy hardware into modern digital processing environments.
Technical Specifications of the HPx-180 PCI/PCIe Synchro-Resolver Card
| Parameter | Specification |
|---|---|
| Form Factor | PCI / PCIe card (half-length, full-height) |
| Power Supply | Standard PC PSU connector (4-pin Molex or 4-pin floppy power) |
| Supported Inputs | 3-wire synchro or 4-wire resolver plus reference |
| Reference Voltage Options | 115 V (model 311-101) or 26 V (model 311-102) |
| Signal Input Voltage | 90 V (115 V model) or ~11.8 V (26 V model) |
| Input Frequency Range | DC to 40 kHz |
| Rotation Rate | 5 rpm to 120 rpm |
| Output Format | 12-bit parallel azimuth + strobe, RS-422 |
| Emulated Outputs | ACP/ARP output (for legacy systems) |
| Angular Resolution | 12 bits (4,096 values per rotation) |
| Environmental (Operating Temp) | 0°C to +55°C |
Features
- PCI/PCIe form factor
- Power from standard PSU connector
- No connection to PCI power/data
- Supports both synchro (3-wire) and resolver (4-wire) input
- Data + strobe parallel azimuth output compatible with HPx-410 & HPx-450
- 12-bit resolution (4096 values per rotation)
- Emulated ACP/ARP output for use with legacy systems
- Input frequency DC to 40kHz
- Rotation period 5 rpm to 120 rpm
- Reference voltage 115V (P/N 311-101), 26V (P/N 311-102)
- Synchro/resolver voltage 90V (P/N 311-101), 12V (P/N 311-102)
