Description

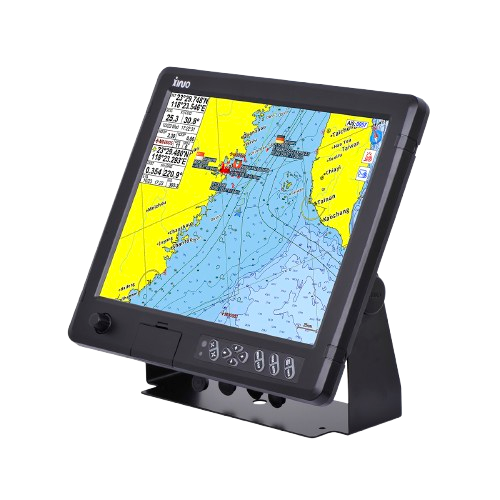

Class B automatic identification system supports BDS, GPS dual-mode high-precision positioning. It is built-in Class B AIS module and installed with perfect AIS function. The AIS list supports 2000 ships’ information display. The AIS radar page intuitively shows the distribution of ships, and provides many types statistical data to meet the needs of different usage scenarios. It also has a variety of extension functions, such as fleet management, CPA alarm, which can meet the requirements of different users.
◆ Passed the EU CE certification, China Classification Society CCS type approval.
◆ 15 inch colour LCD with 1024 x 768 resolution, wide angle of view.
◆ Classic& Utility dual operating system, you can switch freely.
◆ Built-in Class B AIS module, with perfect AIS function. It can timely respond to regulatory instructions.
◆ Intelligent CPA alarm calculation mechanism can avoid outdated and ineffective alarms.
◆ Install in intelligent voice to broadcast operation content, alarm content, etc.
◆ Connect to mobile network to upgrade software online.
Technical Specifications
| Display Unit | HM-5900(15″) | |
| Display Type | Colour TFT LCD | |
| Size | 15 inch | |
| Resolution | 1024 × 768 pixels | |
| Brightness | 450cd/㎡ | |
| Language | English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish, Burmese, Persian | |
| Display Modes | Standard Chart View, Pure Chart View, Simple Chart View, AIS Data, Sailing Data, GNSS, 3D Navigation, Compass | |
| Memory Capacity | 50,000 waypoints, 50,000 markers, 500 routes, one route can indicate 200 waypoints , 1000 tracks, 1600000 track points | |
| Interface | 1 Port AIS Output , 2 Port NMEA 0183 Output , 3 Ports NMEA 0183 Input (Baud rate can be set independently) | |
| WIFI | 802.11 b/g/n | |
| Power Supply | DC12V~36V | |
| Power Consumption | 16W or less (24V DC) | |
| AIS Class B Transceiver | ||
| Frequency | 156.025MHz ~ 162.025MHz | |
| Bandwidth | 25kHz | |
| Modulation | GMSK / FM | |
| Data Rate | 9,600 bps | |
| Number of AIS Transmitter | 1 | |
| Number of AIS Receiver | 2（AIS1, AIS2） | |
| AIS1 (default) | 161.975MHz | |
| AIS2 (default) | 162.025MHz | |
| Output Power | 2 W | |
| Rx Sensitivity | < -107 dBm @ 20% PER | |
| Environmental | ||
| Storage Temperature | -20℃~+60℃ | |
| Working Temperature | -15℃~+55℃ | |
| Waterproof | IP65 | |
