Description

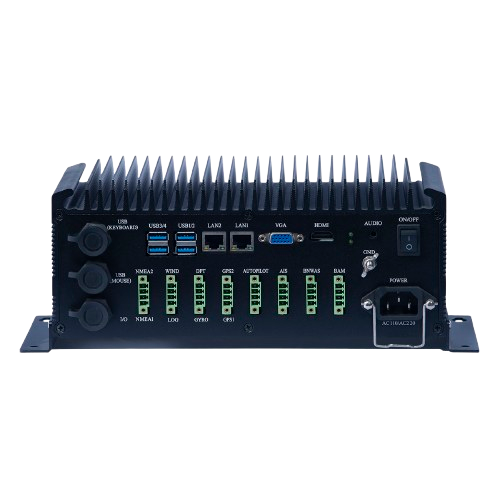

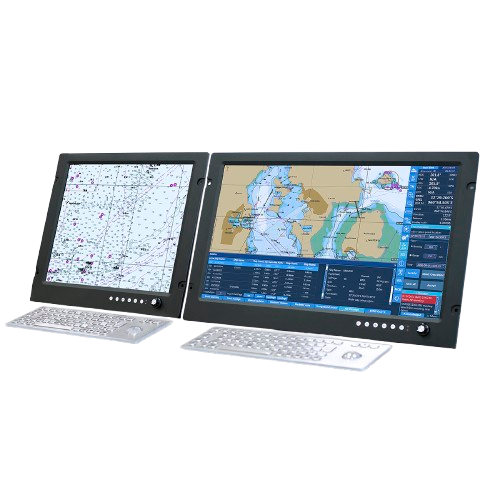

HM-5818 Electronic Chart Display and Information System (ECDIS) consist of host and display, there are two size of display, 19 inch and 24 inch, users can select according to their actual need. The ECDIS includes functions of electronic chart display and management, multiple methods for route design, route detection, navigation monitoring, etc.
The HM-5818 ECDIS (Electronic Chart Display and Information System) from XINUO is built for professional shipboard navigation monitoring. It consists of a main host plus a large marine-display (options include 19″ or 24″, and in some listings even 26″) allowing operators to view electronic navigational charts, plan and monitor routes, integrate sensor data (like GNSS/GPS, AIS, gyro, log, radar ARPA), and perform real-time navigation monitoring including warnings/alarms.
Technical Specifications
| Display Unit | ||
| Model | HM-5818(19″) | |
| Display Resolution | 1280 x 1024(SXGA) | |
| Aspect Ratio | 4:3 | |
| Screen Brightness | 450cd/m2 | |
| Screen Size | 376mm×301mm | |
| Viewing Angle | Horizontal, 170° Vertical, 160° | |
| Contrast Ratio | 1000:1 | |
| Model | HM-5818(24″) | |
| Display Resolution | 1920 ×1200(WUXGA) | |
| Aspect Ratio | 16:10 | |
| Screen Brightness | 600cd/m2 | |
| Screen Size | 518.4mm×324mm | |
| Viewing Angle | Horizontal, 178° Vertical, 178° | |
| Contrast Ratio | 1000:1 | |
| Model | HM-5818(26″) | |
| Display Resolution | 1920 ×1080(FHD) | |
| Aspect Ratio | 16:9 | |
| Screen Brightness | 500cd/m2 | |
| Screen Size | 597.6mm×336.15mm | |
| Viewing Angle | Horizontal, 178° Vertical, 178° | |
| Contrast Ratio | 3000:1 | |
| Processor | ||
| CPU | Intel Haswell/Brodwell U series 15W | |
| Memory | DDR3-1066 MT/S 4GB | |
| SSD | SSD 480G | |
| Audio | Audio ALC 662 HD Around a track+the microphone | |
| I/O | 6 PIN | |
| Ethernet | 1000Mbps | |
| Power | AC 220V & AC 110V | |
| Power Consumption | 17W or less (220 VDC) | |
| Compass Input Port | Support | |
| Log Device Input Port | Support | |
| GNSS Port | Support 2 ports | |
| ARPA Input Port from Radar | Support | |
| AIS Input Port | Support | |
| Video Output Port | VGA , HDMI | |
| USB | 4 ports, USB 2.0 type A | |
| LAN Port | LAN1, LAN2 | |
| Wi-Fi | 802.11b/g/n | |
| 4G Module | LTE/GSM, Internal antenna, and support to connect external antenn | |
| Environmental | ||
| Operation Temperature | -15℃~+55℃ | |
| Storage Temperature | -20℃~+70℃ | |
| Language Switch | English, Chinese | |
| Manual | English, Chinese | |
| User Opteration | Menu operation/double click/zoom by roller | |
| Workstation | Split device | |
| Standard | IEC 60945, IEC61174(ECDIS), IEC 60529(IP20), IEC 61162-1, IEC 61162-2, IEC 62288,2014,
IMO A.694(17), IMO MSC.232(82), IHO S-52, IHO S-57, IHO S-63, IHO S-64, CCS GD 22 Guide for the acceptance test of electrical and electronic products. CCS GD 06 Guide for inspection of electronic chart display and information system (ECDIS). International Maritime Organization navigation safety sub committee NO.266 circular. <electronic chart display and information system software maintenance> |
|
