Description
GNSS chart plotter supports BDS, GPS dual-mode high-precision positioning, combined with self-developed SOG&COG filtering algorithm, it has advantages of stable SOG & COG, high receiving sensitivity, accurate position.
◆ Passed the EU CE certification.
◆ 15 inch colour LCD with 1024 x 768 resolution, wide angle of view.
◆ Classic& Utility dual operating system, you can switch freely.
◆ Built-in BDS, GPS dual-mode high-precision positioning module, the position information is stable and reliable.
◆ Support multi-language display, such as Chinese, English, Korean, etc.
◆ Many display pages can be chose and switched freely.
◆ Support external XINUO remote-control keypad, more convenient and efficient.

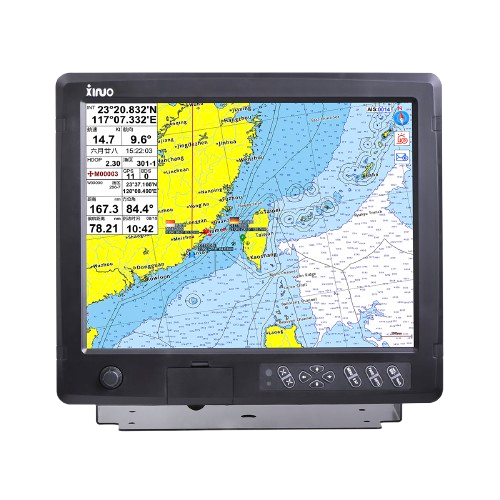

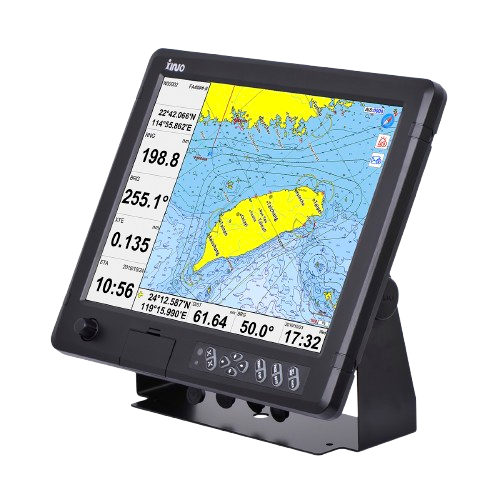

The HM-1815 15-inch GNSS Chart Plotter delivers precise marine navigation with dual-mode GPS/BDS positioning, a bright 1024×768 TFT display, and support for C-MAP MAX charts. Designed for commercial and recreational vessels, it offers extensive waypoint and route capacity, multiple NMEA 0183 interfaces, IP65-rated durability, and intelligent voice alerts. Its user-friendly dual operating modes, online software updates, and multi-language support make it a reliable and versatile navigation solution for offshore and inshore operations.
Technical Specifications
| Display Unit | HM-1815 | |
| Display Type | Colour TFT LCD | |
| Size | 15 inch | |
| Resolution | 1024 × 768 pixels | |
| Brightness | 450cd/㎡ | |
| Language | English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish, Burmese, Persian | |
| Display Modes | Standard Chart View, Pure Chart View, Simple Chart View, AIS Data, Sailing Data, GNSS, 3D Navigation, Compass | |
| Memory Capacity | 50,000 waypoints, 50,000 markers, 500 routes, one route can indicate 200 waypoints , 1000 tracks, 1,600,000 track points | |
| Interface | 3 Ports NMEA0183 Output , 3 Ports NMEA0183 Input (Baud rate can be set independently) | |
| WIFI | 802.11 b/g/n | |
| Power Supply | DC18V~36V | |
| Power Consumption | 12W or less (24V DC) | |
| Environmental | ||
| Working Temperature | -15℃~+55℃ | |
| Storage Temperature | -20℃~+60℃ | |
| Waterproof | IP65 | |
