Description
GNSS chart plotter supports BDS, GPS dual-mode high-precision positioning, combined with self-developed SOG&COG filtering algorithm, it has advantages of stable SOG&COG, high receiving sensitivity, accurate position. It supports XINUO-MAP, C-MAP(MAX) dual chart system, users can switch freely.
◆ Passed the EU CE certification.
◆ 12.1 inch color LCD with 800 x 600 resolution, wide angle of view.
◆ Classic& Utility dual operating system, you can switch freely.
◆ Built-in BDS, GPS dual-mode high-precision positioning module, the position information is stable and reliable.
◆ Support multi-language display, such as Chinese, English, Korean, etc.
◆ Many display pages can be chose and switched freely.
◆ Connect to mobile network to upgrade software online.

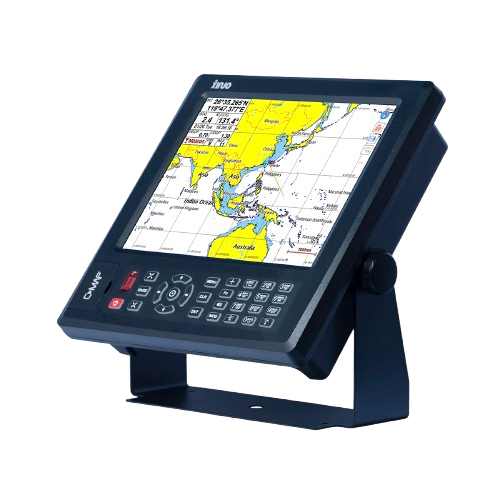

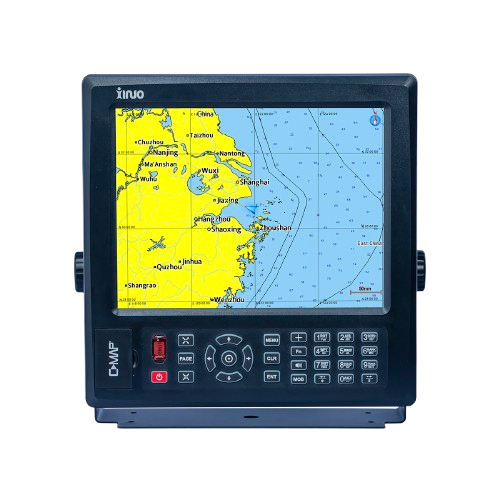

The Xinuo HM-1512 is an advanced and reliable marine chart plotter built for serious navigation. With support for both GPS and BeiDou (BDS) satellite systems, it provides high-precision positioning. Using Xinuo’s proprietary SOG & COG filtering algorithm, it ensures stable and accurate speed-over-ground and course-over-ground data.
The device features a large 12.1-inch color TFT LCD with a resolution of 800 × 600, delivering a clear and wide-angle view of charts and navigation data. Its dual operating interfaces, Classic and Utility, allow users to choose the mode that best fits their style or situation.
Technical Specifications
| Display Unit | HM-1512 | |
| Display Type | Color TFT LCD | |
| Size | 12.1 inch | |
| Resolution | 800 × 600 pixels | |
| Brightness | 500cd/㎡ | |
| Language | English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish, Burmese, Persian | |
| Display Modes | Standard Chart View, Pure Chart View, Simple Chart View, AIS Data, Sailing Data, GNSS, 3D Navigation, Compass | |
| Memory Capacity | 50,000 waypoints, 50,000 markers, 500 routes, one route can indicate 200 waypoints , 1000 tracks, 1,600,000 track points | |
| Interface | 3 Ports NMEA0183 Output , 3 Ports NMEA0183 Input (Baud rate can be set indenpently) | |
| WIFI | 802.11 b/g/n | |
| Power Supply | DC12V~36V | |
| Power Consumption | 11W or less (24V DC) | |
| Enviromental | ||
| Working Temperature | -15℃~+55℃ | |
| Storage Temperature | -20℃~+60℃ | |
| Waterproof | IP65 | |
