Description

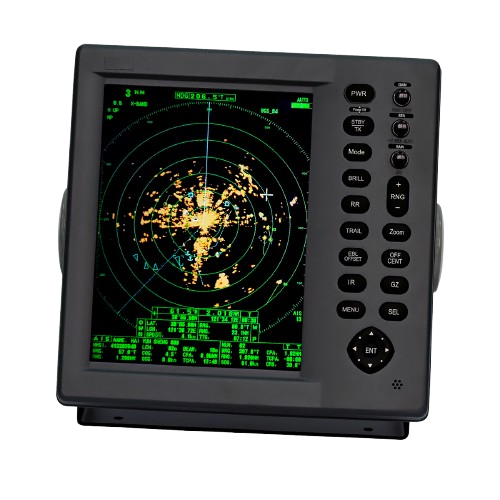

XINUO XLR series marine navigation radar is designed with high-performance microprocessor and advanced integrated circuits. It delivers stable imaging with clear and rich echoes, and offers a variety of colour display options for echoes and screen, ensuring optimal visibility under various lighting conditions, day or night.

The radar support communication with other devices via NMEA0183, such as Compass, AIS, and Log. Users can expand and customize the vessel’s systems as required.

This radar family brings together high-performance electronics, marine-grade design and full navigation system integration. The radar supports features such as automatic tuning (gain, sea/rain), zoom close-ups of selected areas, echo colour choices (red, green, yellow, orange or multi-colour), north-up reference, and integrated radar maps with custom lines/symbols for repeated use.

The zoom function allows to enlarge selected areas to twice normal size for close-up observation.

◆ Echo colours are available in a choice of red, green, yellow, orange or multi-colour.

◆ With automatic tuning/gain/sea/rain control functions.

◆ The radar map operates in a north-up mode and using the WGS-84 reference coordinate system.

◆ Users can generate radar maps with a combination of map lines and symbols, and map data can  be saved to facilitate repeated use on a routine navigation area.

◆ The TT (ARPA) can capture and track 20 targets automatically or manually.

◆ The EPA can plot up to 10 targets to estimate their movement trends.

◆ The radar system is compatible with GNSS, HDT, AIS, and LOG data.

Technical Specifications

• Display unit screen size: 10.4″ (model XLR1004R / XLR1006L) or 12.1″ (model XLR1204R / XLR1206L).

• Resolution of display unit: 800 × 600 pixels for the 12.1″ variant in the listing.

• Radar frequency band: X-Band (~9.410 GHz ± 30 MHz) for both 4 kW and 6 kW versions.

• Transmit power: 4 kW (models XLR1004R, XLR1204R) or 6 kW (models XLR1006L, XLR1206L) listed.

• Minimum range: 35 m (for 4 kW variant) and 30 m (for 6 kW variant) in one listing.

• Range discrimination (resolution): approx. 20 m for both 4 kW and 6 kW variants.

• Bearing discrimination (beam width): 4.0° (4 kW) and 2.0° (6 kW) in the listing.

• Echo colours: 32 levels, red/green/yellow/orange/multi-colour options.

• Zoom function: supports enlarging selected areas up to twice normal size.
