Description

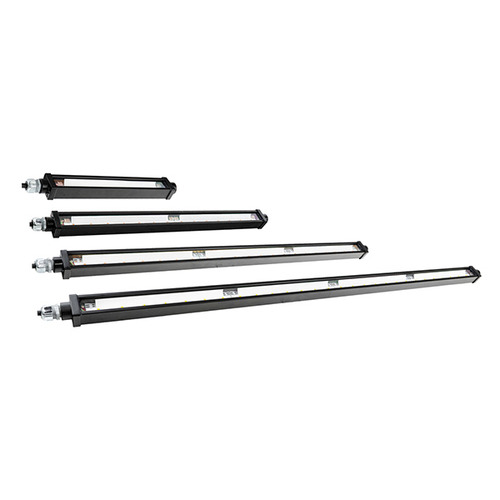

The Nemalux GS Series is a lightweight, factory‑sealed linear LED luminaire engineered for compact spaces such as enclosures, vehicle cabins, service tunnels, and bull rail installations. Available in four lengths (GS‑1: 15.5″, GS‑2: 26.5″, GS‑3: 37.5″, GS‑4: 48.5″) and with AC (120 VAC) or DC (12/24 VDC) power options, the GS delivers from 500 to 5,000 lumens. The extruded copper‑free aluminum housing with Type II anodizing and polycarbonate lens ensures rugged durability, while Gore‑vented, pressure‑equalized design extends lifespan and reliability. With an IP66/IP67 rating (IP68 variant available as GS‑EN for submersion to ~25 ft), dark‑sky compliant models, and support for high‑speed camera applications, the GS Series is certified for UL/CSA hazardous environments including Class I Div 2, Class II Div 2, Class III, Zone 2 IIC, and Zone 22. It also boasts a 5‑year transferable warranty and projected lifetime beyond 100,000 hours.

Features

• Designed for marine, harsh, and hazardous location use
• 12 or 24 Volt DC as well as 120 Volt AC direct input circuit board / light engine
• Light weight and low-profile housing allow for deployment in complex areas

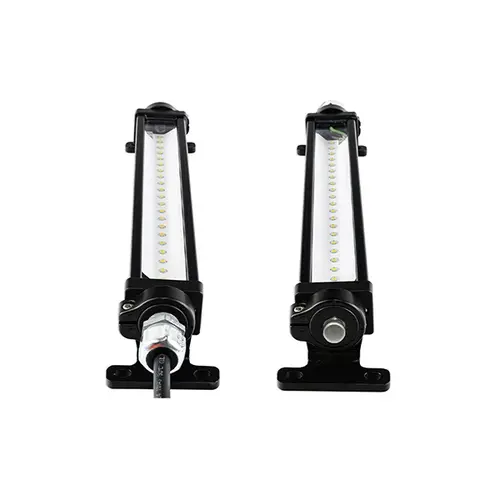

• Adjustable mounting brackets allows for 360° rotation
• Sealed housing provided with 3ft cable and cable gland
• Vented enclosure to prevent stress on electronics and gaskets

Technical Specs

Voltage: DC: 12: 11-16 VDC | 24: 22-28 VDC | 24H: 22-28 VDC
AC: 120 VAC ± 10% (60 Hz)
Ingress Protection: IP66 | IP67 | IP68*
Temp Range: -40°C to +65°C
Certification: UL 844, UL 1598, UL 1598A, UL 2108;
CSA 22.2 No. 137, CSA 22.2 No. 250.0;
Class I, Division 2, Groups ABCD, T4;
Class II, Division 2, Groups FG, T6;
Class III;
Class I, Zone 2, Group IIC; Zone 22
