Description
GN150 series multi-system shipborne radionavigation receivers are the first products in this category to be certified by CCS in China, it supports multi-mode high precision positioning, multi-language display to satisfy the requirements of different user groups.

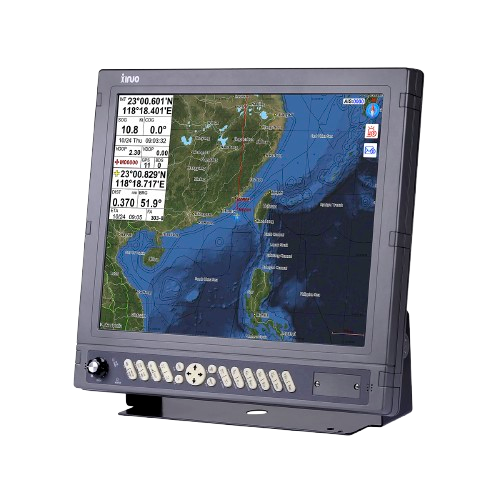

The Xinuo GN150 (17″) is a high-performance, multi-system radionavigation receiver built specifically for marine vessels. It combines precise positioning with a large, bright display and robust operational flexibility.
At the heart of the unit lies a powerful quad-core Cortex-A17 processor paired with ample internal storage, ensuring smooth chart rendering and data handling. The 17-inch TFT LCD screen delivers a resolution of 1280 × 1024, offering wide viewing angles and high brightness for optimal visibility even in harsh bridge lighting conditions.
The GN150 (17″) supports multi-mode GNSS positioning, using BDS (BeiDou) and GPS. It also accepts differential corrections via RTCM 2.3, helping to improve its positioning accuracy. To stabilize navigation data (speed over ground and course over ground), it employs a proprietary SOG/COG filtering algorithm that adapts to different vessels.
For usability and safety, the device supports both a Classic and a Utility operating system, allowing users to switch their interface to suit their needs. It also supports online firmware/software upgrades via a mobile network, so the system can stay current. Voice prompts and alarms announce operational states and error conditions, helping to alert crew in real time.
Technical Specifications
| Display Unit | GN150(17″) | |
| Display Type | Color TFT LCD | |
| Size | 17 inch | |
| Resolution | 1280*1024 | |
| Brightness | 500cd/㎡ | |
| Language | English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish, Burmese, Persian | |
| Display Modes | Standard Chart View, Pure Chart View, Simple Chart View, AIS Data, Sailing Data, GNSS, 3D Navigation, Compass | |
| Memory Capacity | 50,000 waypoints, 50,000 markers, 500 routes, one route can indicate 200 waypoints , 1000 tracks, 1600000 track points | |
| Interface | 3 Ports NMEA0183 Output , 3 Ports NMEA0183 Input (Baud rate can be set indenpently) | |
| Chart | XINUO-MAP&C-MAP(MAX) | |
| WIFI | 802.11 b/g/n | |
| Power Supply | DC12V~36V | |
| Power Consumption | 15W or less (24V DC) | |
| Enviromental | ||
| Working Temperature | -15℃~+55℃ | |
| Storage Temperature | -20℃~+60℃ | |
| Waterproof | IP65 | |
