Description

GN150 series multi-system shipborne radionavigation receivers are the first products in this category to be certified by CCS in China, it supports multi-mode high precision positioning, multi-language display to satisfy the requirements of different user groups.

• Install in intelligent voice to broadcast operation content, alarm content, etc.
• Classic& Utility dual operating system, you can switch freely.
• Power failure will immediately alarm to ensure the device work well.
• Passed the EU CE certification, China Classification Society CCS type approval.
• 12.1 inch color LCD with 800 x 600 resolution.
• Super cortex-A17 processor with high-capacity storage, born to be strong, never settle.
• Built-in high-precision BDS/GPS multi-mode positioning module, support RTCM2.3 DGNSS input.
• Self-developed SOG&COG filtering algorithm which can intelligently match ship types to achieve stable SOG&COG output.
• Connect to mobile network to upgrade software online.

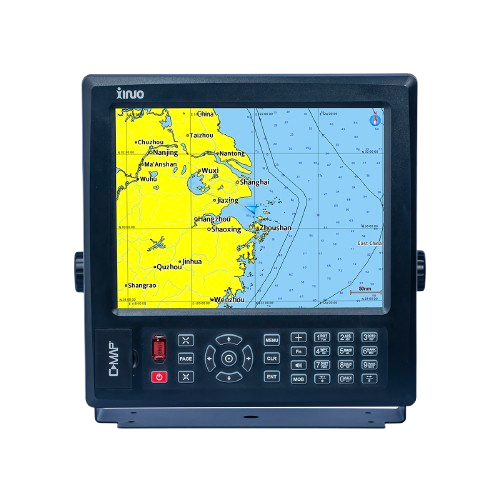

Designed for demanding shipboard navigation environments, the Xinuo GN150 (12″) delivers reliable multi-constellation GNSS positioning, advanced processing, and user-friendly display features in a rugged maritime package. Certified by the China Classification Society (CCS) and bearing CE approval, it supports global maritime radionavigation requirements.

Built for integration, it features multiple NMEA 0183 ports for input/output, WiFi connectivity (802.11 b/g/n) for additional interfacing, and flexible power supply from 12 V to 36 V DC. Environmental protection includes IP65 sealing and a working temperature range of –15 °C to +55 °C, enabling installation in ship-bridge or other navigation-critical spaces.

Technical Specifications
