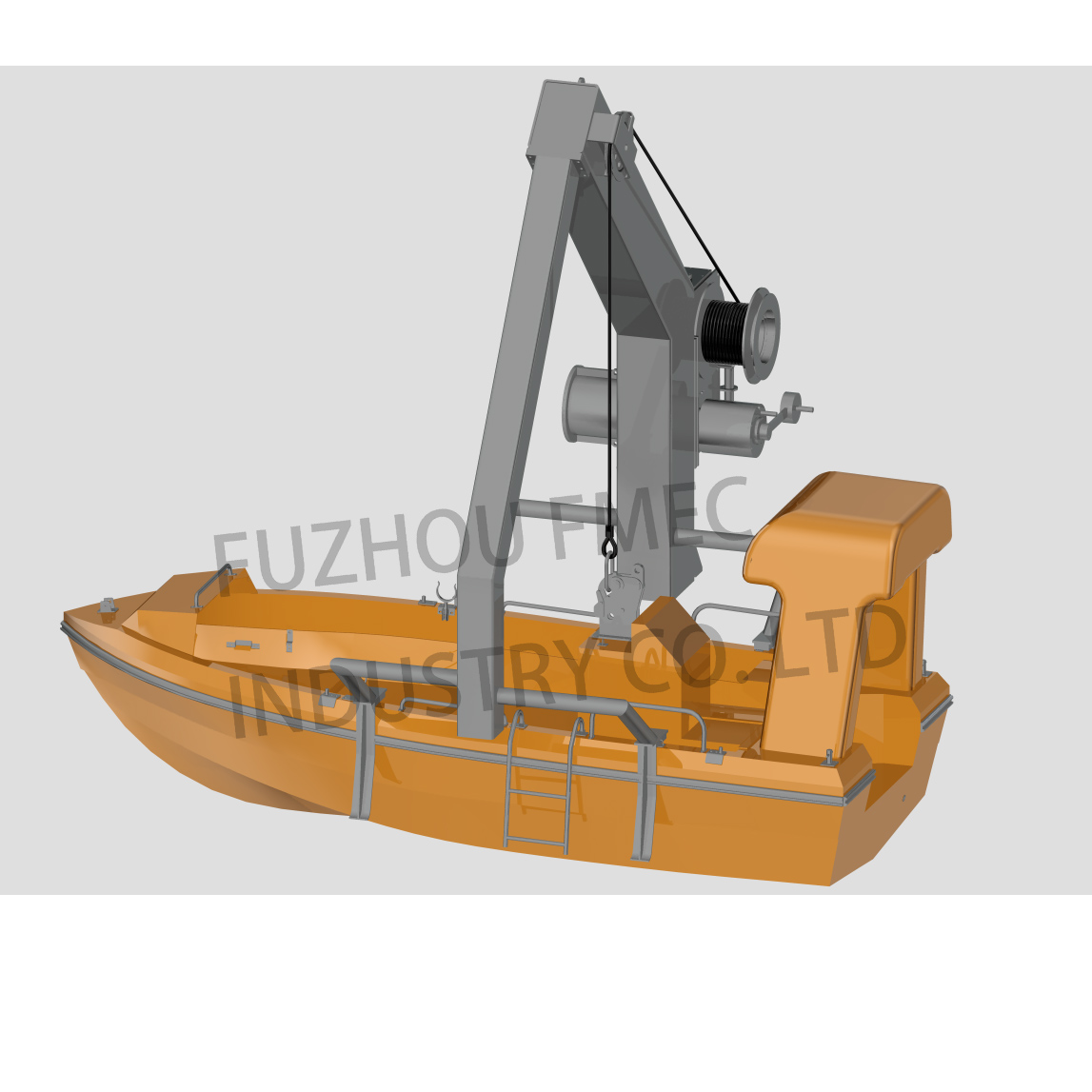

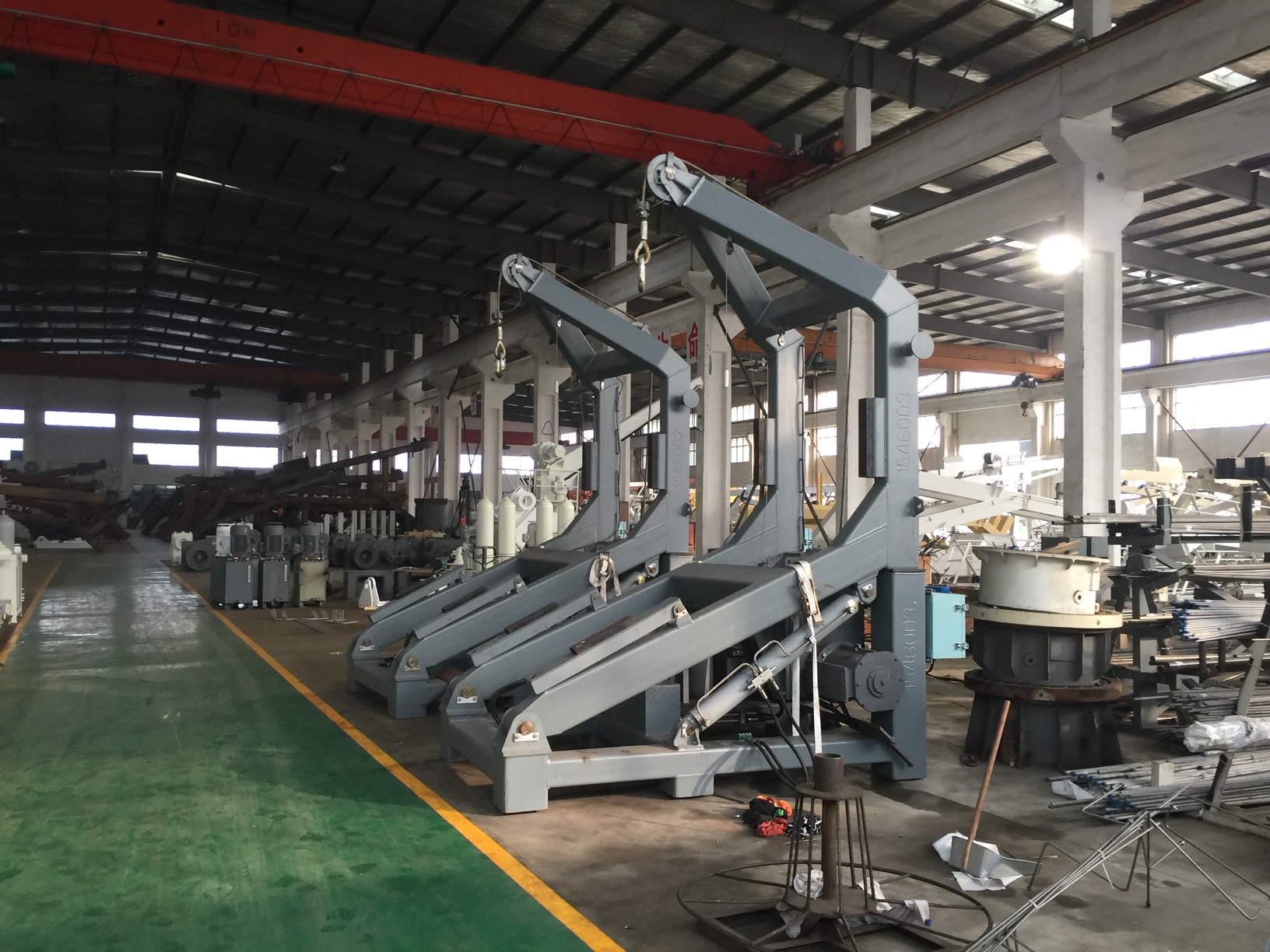

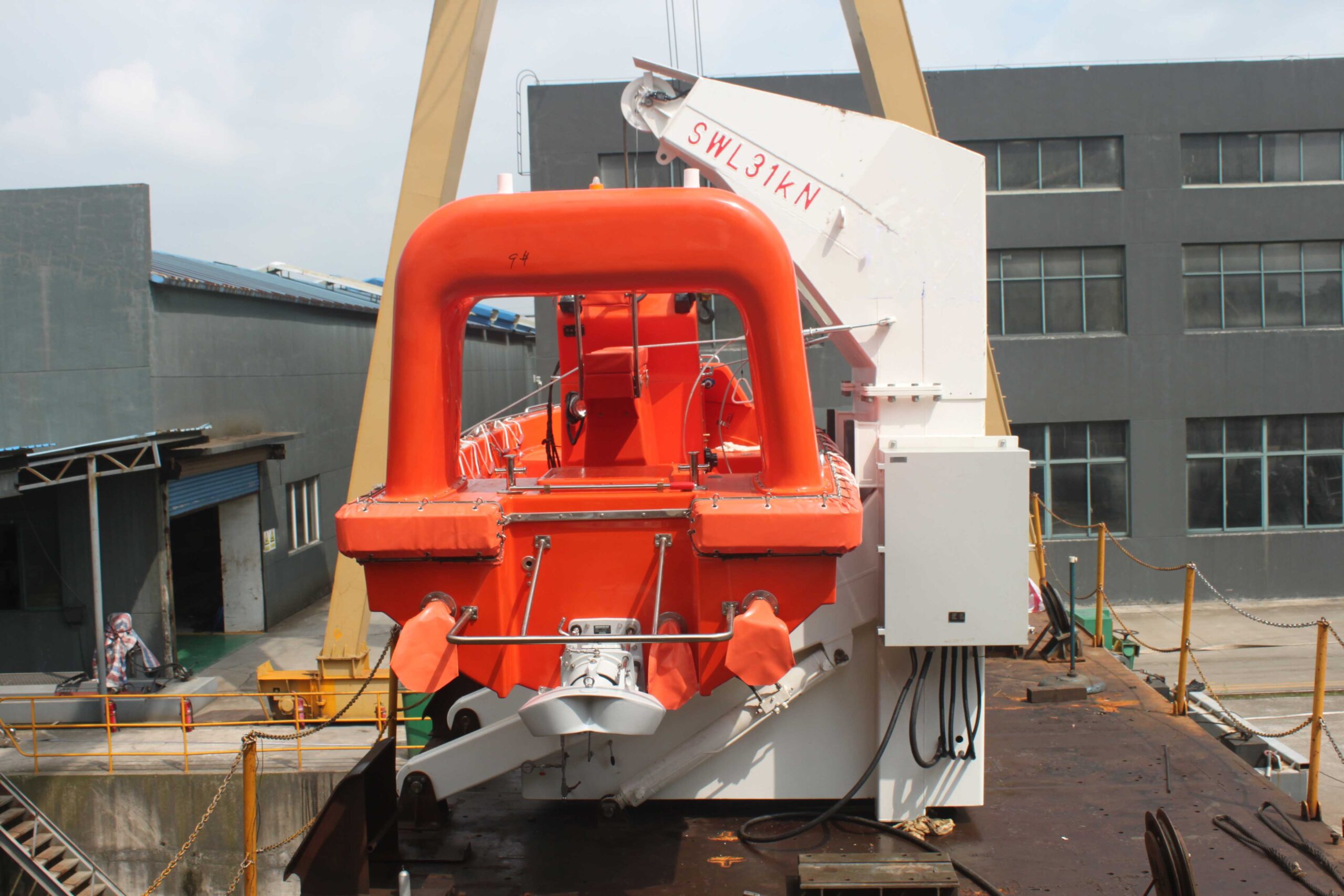

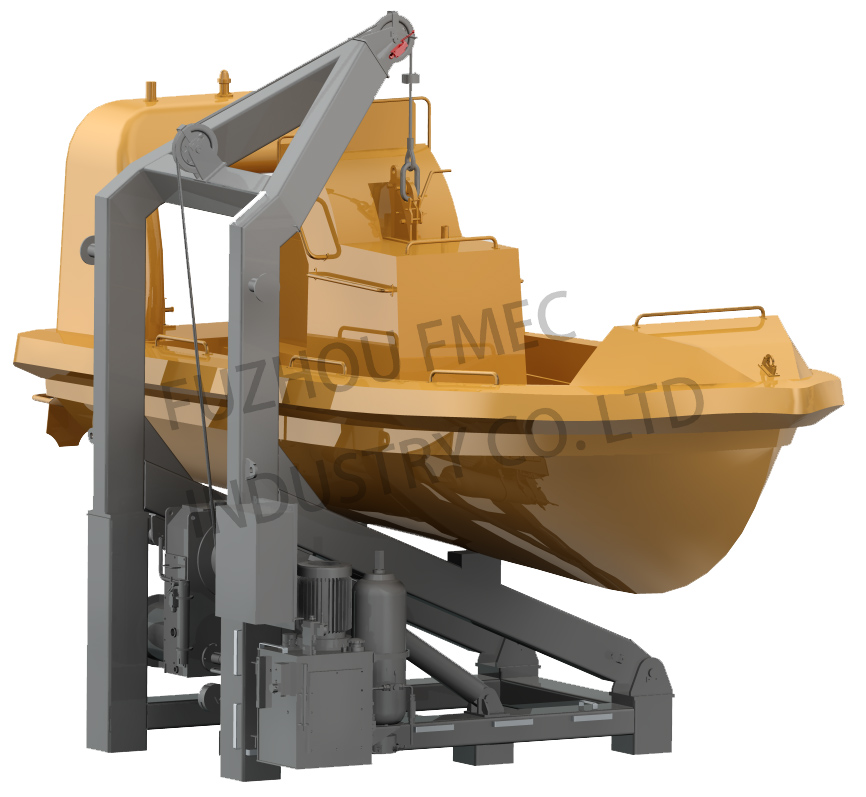

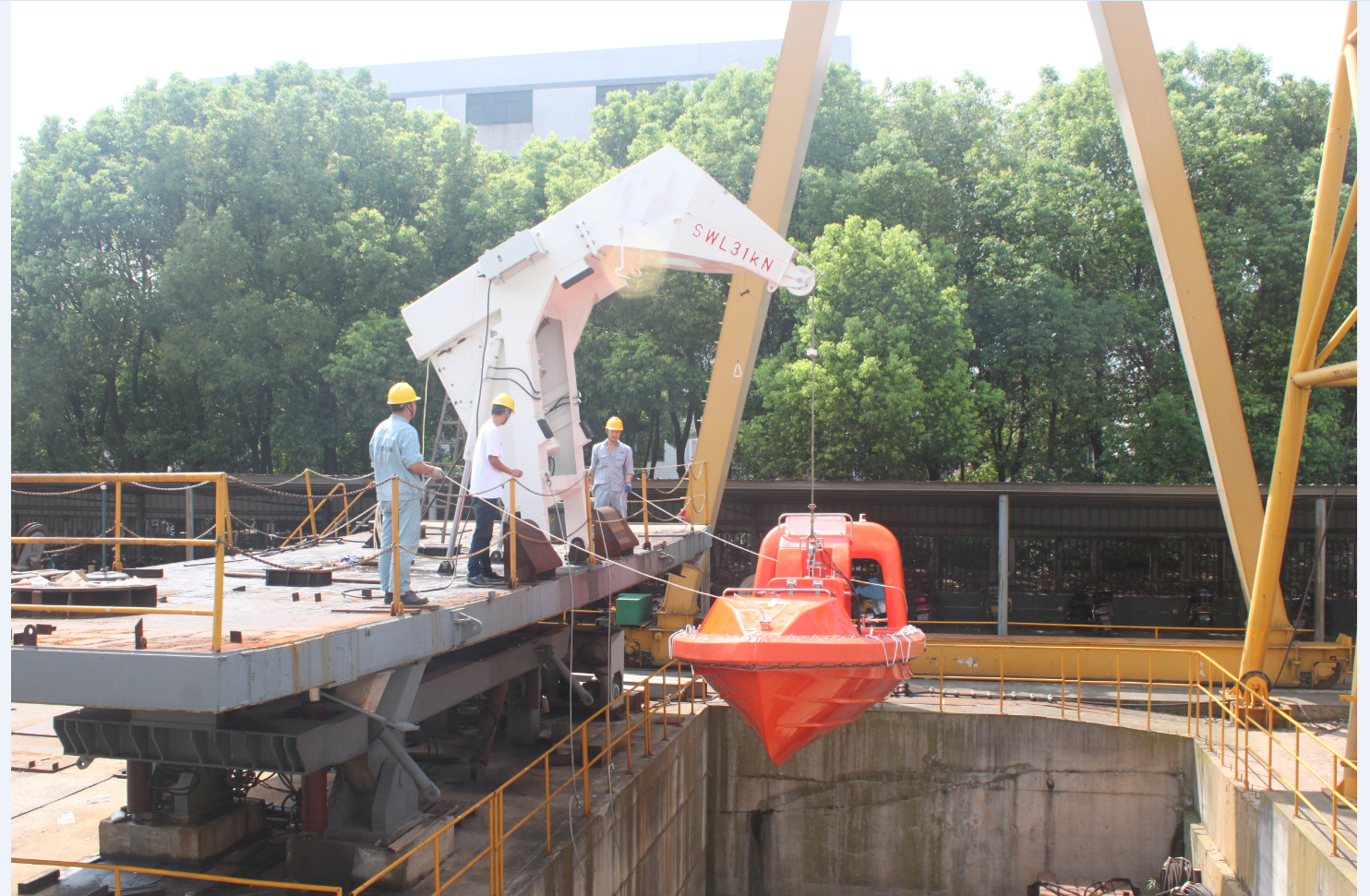

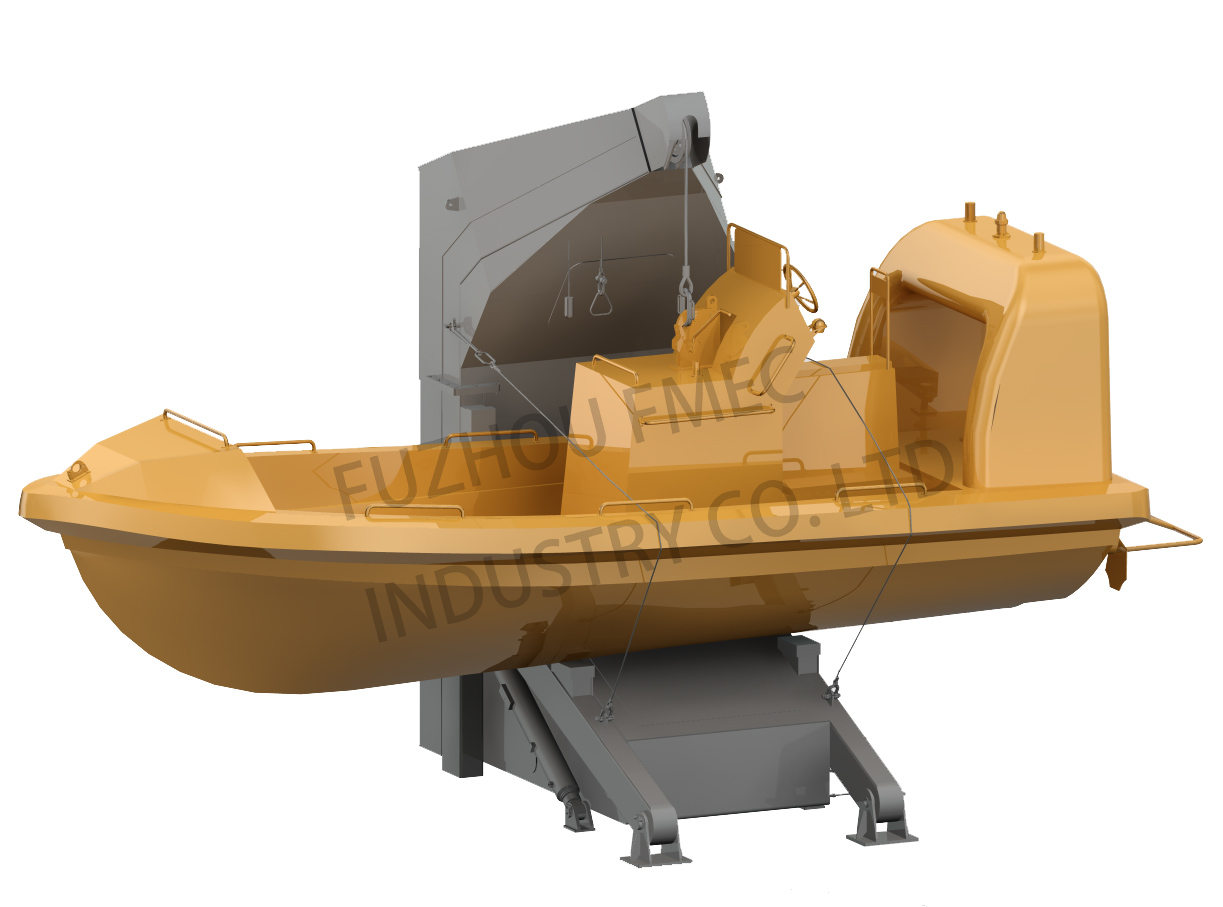

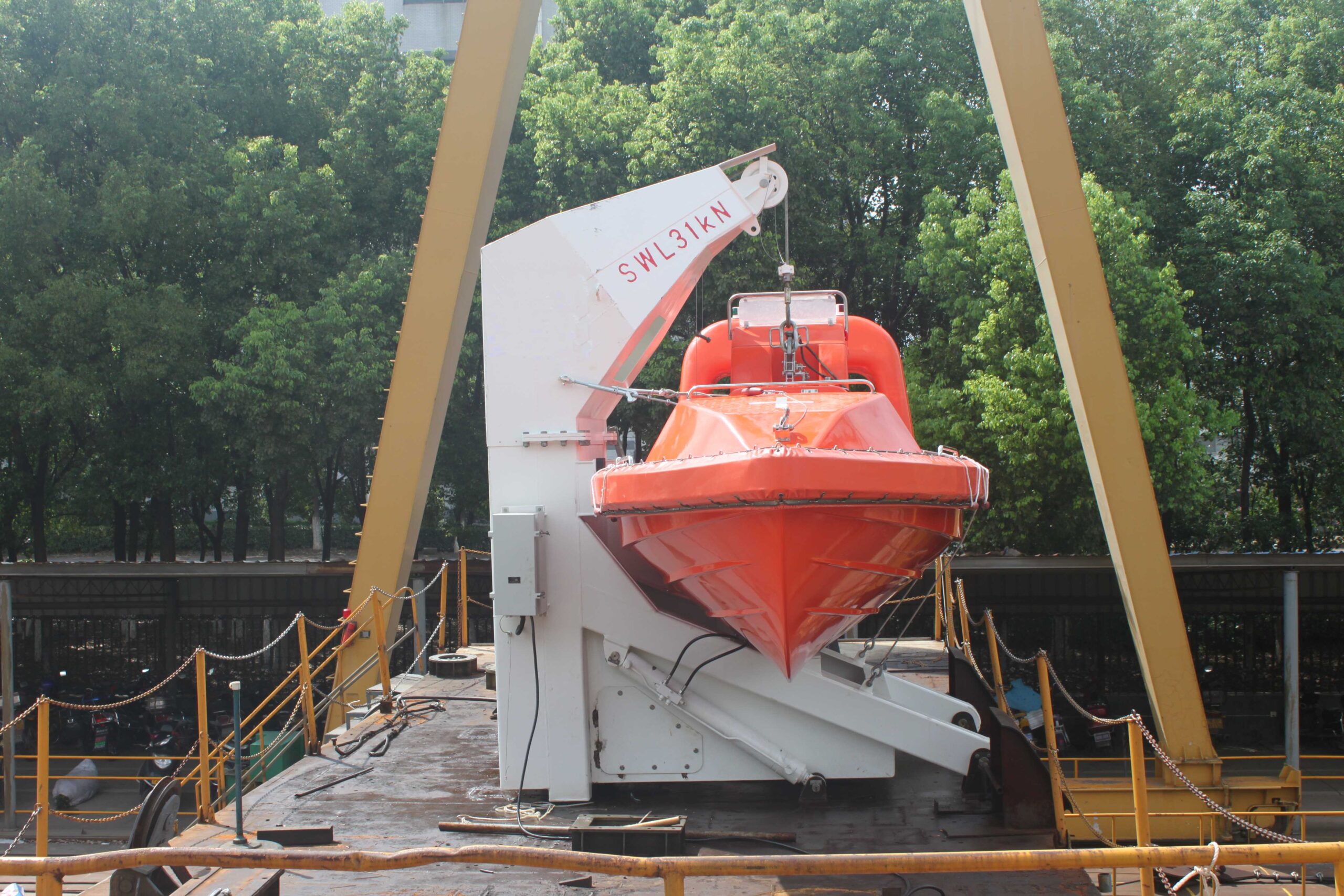

Fast Rescue Boat Davit (A Type) – High-Speed Launching System for Emergency Response

The Fast Rescue Boat Davit (A Type) from CMEC FJCN is a specialized marine launching appliance developed to handle fast rescue boats (FRBs) under the toughest sea conditions. With its A-frame structure, this davit is tailored for vessels that require rapid emergency response capabilities, such as patrol ships, offshore platforms, naval vessels, and merchant ships.

Built with marine-grade steel and designed for high-load operations, the A Type Davit ensures safe, controlled launching and recovery of fast rescue boats, even when the vessel is moving or the sea is rough. Its gravity-assisted and/or hydraulic lowering mechanism makes it quick and reliable, while the electro-hydraulic winch system ensures smooth retrieval without compromising on speed or safety.

Fully compliant with SOLAS, IMO, and LSA Code standards, this davit system includes shock absorbers, automatic release hooks, and limit switches for additional safety. The compact A-frame design provides maximum strength while conserving valuable deck space, making it a favored choice for modern, space-conscious marine vessels.

Key Features and Benefits:

• A-frame structural design – offers stability, strength, and compact footprint

• Fast deployment of rescue boats – ideal for emergency and man-overboard situations

• Hydraulic winch and slewing mechanisms – smooth lowering and hoisting

• Gravity-assisted launch capability – ensures function during power failure

• Stainless steel wire rope and fittings – corrosion-resistant and durable

• Manual backup operation – ensures reliability under all conditions

• Fully SOLAS and IMO compliant – meets international safety regulations

• Integrated control panel – enables intuitive operation by a single crew member

The davit can be operated from local or remote control stations and integrates with automatic release hooks that activate upon water contact. Its shock absorption system protects both the boat and davit during retrieval, particularly when seas are rough or the rescue boat returns at high speed.

Technical Specifications:

• Safe Working Load: 25–35 kN

• Lowering Speed: 0.3 – 1.0 m/s

• Lifting Height: Customizable (standard 15–25 meters)

• Operation Mode: Hydraulic, electro-hydraulic, or manual backup

• Boom Type: A-frame davit arm with pivoting function

• Material: Marine-grade steel with epoxy/PU coating

• Power Supply: 380V AC, 50/60 Hz (custom voltages available)

• Surface Treatment: Anti-corrosion marine paint system

• Temperature Range: –20°C to +50°C

• Certifications: SOLAS, LSA Code, MSC.81(70), CCS, ABS, DNV, BV

Each CMEC FJCN Fast Rescue Boat Davit (A Type) comes with complete installation documentation, user manuals, type approval certificates, and optional onboard training. The unit is thoroughly factory-tested to ensure reliability and performance in any mission-critical application.
