Description

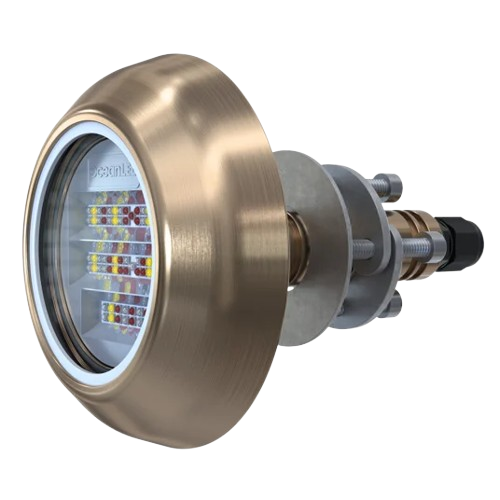

The Explore E3 Thru-Hull/Flush model from OceanLED brings together cutting-edge optics, robust marine construction and versatile colour/beam options into a compact underwater lighting solution. The unit features a wide 90° top-beam and a focused 20° side-beam to create a “blade of light” effect beneath the vessel.
The thru-hull style mounting allows for installation into the hull or transom with minimal drag and a sleek bezel. The cartridge or flush section is designed for easier servicing, especially in the XFM variant. Its material construction (AB2 aluminium bronze mount tubing, optical-grade lens) ensures durability in harsh marine environments.
Available colour variants include ultra white, midnight blue, dual-colour (blue/white) and full RGBW (colour-scroll) models. Fish-strobe modes are included in many variants to attract bait or create dynamic lighting effects.
This light is well-suited for boat owners looking to elevate their vessel’s underwater presence (for ambience, display or fishing) and who require a high-quality, serviceable fixture with minimal protrusion and maximum effect.
Product features:
- Up To 11,000 Fixture Lumens
- Advanced Light Angling Technology
- Advanced Underwater Optics
- Ultra Reliable
- Easy Install
- Dual Mechanical Seals
- Tritonium Coated Lens
Technical Specifications
-
Model: Explore E3 Thru-Hull / Flush (XFM)
-
Mounting Style: Thru-Hull or flush-mount variant (via mounting tube)
-
Beam Pattern: 90° top beam × 20° side beam (elliptical optics)
-
Light Output (approximate):
-
Up to ~5,000 fixture lumens for single-colour versions.
-
Dual-colour / RGBW variants somewhat lower in fixture lumens (varies by variant).
-
-
Colour Options: Ultra White; Midnight Blue; Blue/White dual; RGBW Colour Scroll.
-
Operating Voltage: DC 9–32 V DC typical.
-
Cut-out Hole (Hull Mount): ~83 mm (3.25″) typical.
-
Total Diameter (Including Flange): ~105 mm (4.13″)
-
Body Diameter: ~80 mm (3.15″)
-
Fixture Length: ~97 mm (~3.8″)
