Description

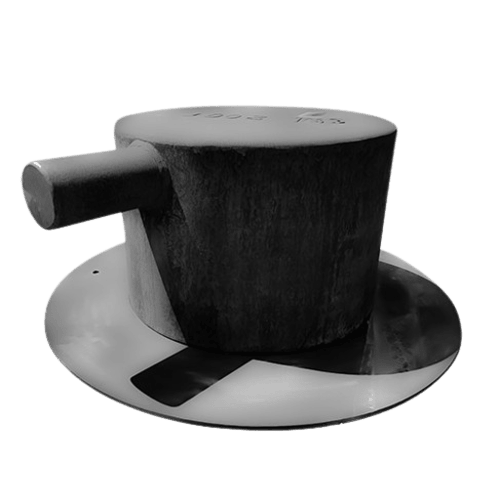

The Escort Bollard (100T–200T) is a heavy-duty mooring and towing fixture specifically engineered for handling tug lines during escort and ship-handling operations. Its robust, angled design enables controlled line lead while allowing the bollard to absorb high dynamic loads of up to 200 tonnes. The inclined profile helps manage vertical and horizontal line forces, improving safety and efficiency in tug-assisted maneuvers. Manufactured from high-tensile steel and securely welded to reinforced deck structures, the escort bollard is built to withstand extreme working conditions in ports, coastal waters, and offshore terminals. The smooth, rounded surfaces protect synthetic and wire ropes from excessive wear, ensuring long-term reliability.

• Escort Bollards Strong Point with a minimum SWL of 100T for tankers over 20,000 DWT but less than 50,000 DWT.
• Escort Bollards Strong Point with a minimum SWL of 200T for tankers of 50,000 DWT and above.

Features

• Rated for high dynamic loads between 100T and 200T

• Angled design for controlled line lead during escort operations

• Withstands extreme forces from tug-assisted maneuvers

• High-strength steel construction for maximum durability

• Smooth, rounded surfaces reduce rope abrasion

• Welded to reinforced deck structure for secure installation

• Corrosion-resistant finish for long service life

• Suitable for ports, offshore terminals, and escort tug operations
