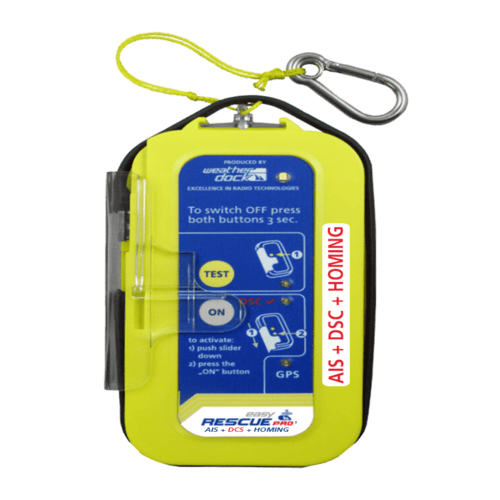

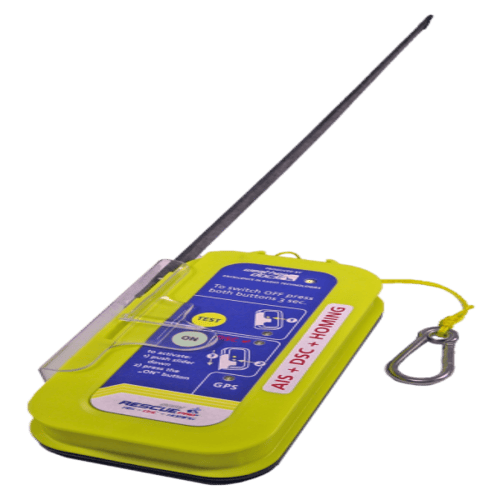

easyRESCUE-PRO 3

The easyRESCUE‑PRO³ is a highly advanced personal emergency beacon designed to maximize the chances of survival and fast rescue in maritime emergencies.

Description

The easyRESCUE‑PRO³ is a highly advanced personal emergency beacon designed to maximize the chances of survival and fast rescue in maritime emergencies.

Highlights

  •  Automatic activation by water contact or by rip cord mechanism with magnetic switch
  •  Simultanious automatic activation of DSC distress call and 121,5 MHz homing signal
  •  Up to 8 MMSI numbers for „closed loop“ to own ship or group of ships
  •  After 10 minutes change to „open loop“, sending to all ships (GMDSS)
  •  Protection against unintended activation
  •  Mothership knows where the victim is and receives DSC distress call
  • GPS position is updated every minute
  •  8 AIS messages per minute
  •  Ships with DSC controller can start search and rescue and /or relay the distress call
  •  Range up to 15 nm (depending on height of receiving antenna)
  •  No royalties
  •  No time delays due to satellite communication
  •  Buoyancy: floatable
  •  Full DSC transceiver

Technical Data

  • IP68 waterproof
  •  Operating conditions: -20°C – 55°C
  •  Dimensions (LxWxH): 125 x 68 x 30 mm
  •  Weight: approx. 350 g
  •  Service interval:
    * after usage
    * after 5 years, in testing mode only
  • Battery lifespan: 5 years (SOLAS standard)
  •  AIS BHS, SOLAS, CE and R&TTE approval
    Transmission power: > 2 W
    45h (DSC acknowledged at once)
  •  DSC Transmission power: 0.5 W
    DSC frequency 156,525 MHz Compliant to RTCM and DSC Class D
  •  Homing Transmission power: 0.05 W 121.5 MHz

Features

Triple Alert System

  1. AIS MOB Transmission (VHF 161.975 / 162.025 MHz)

    • Sends a continuous AIS distress signal with live GPS position updates.

    • Visible to all AIS-enabled vessels within approx. 10–15 nautical miles.

    • Appears on ECDIS, chart plotters, or navigation software.

  2. DSC Distress Calling

    • Sends “closed-loop” distress calls to up to 8 pre-programmed MMSI numbers.

    • If unanswered, switches to “open-loop” general distress call to all ships.

    • Transmits via VHF Channel 70 (DSC).

  3. 121.5 MHz Homing Beacon

    • Emits a continuous analog distress signal for short-range localization.

    • Detectable by SAR aircraft and vessels with direction-finding equipment.

Activation Features

  • Automatic water contact activation

  • Ripcord + magnetic switch activation (for compatible lifejackets)

  • Manual one-button activation

Bluetooth & App Connectivity

  • Integrated Bluetooth Low Energy (BLE)

  • Use the free mobile app (iOS/Android) for:

    • MMSI programming

    • Device configuration

    • System checks and updates

Battery & Operating Time

  • AIS-only: ~96 hours operation

  • Full system (AIS + DSC + 121.5 MHz): ~24 hours

  • 5-year battery shelf life

  • Non-rechargeable; replaceable by authorized service

Build & Design

  • Compact: 125 × 68 × 30 mm

  • Lightweight: ~350 g

  • Waterproof: IP68 rated

  • Floats independently

  • Rugged and impact-resistant

  • Designed to integrate into inflatable lifejackets

Additional information

Brand

Weatherdock
