Description

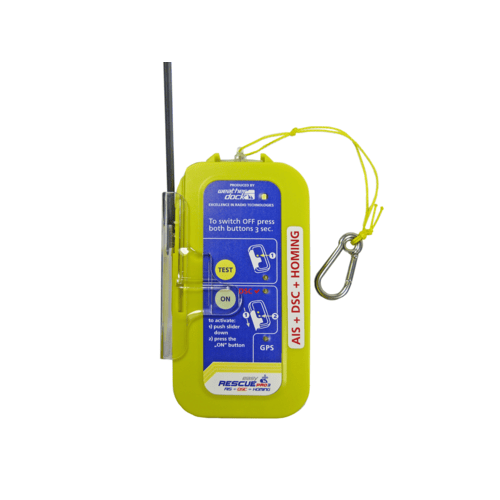

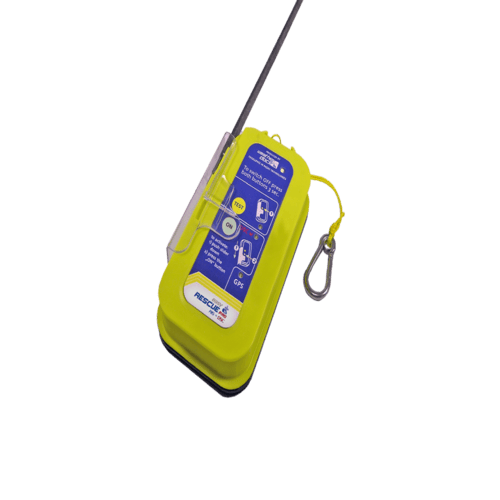

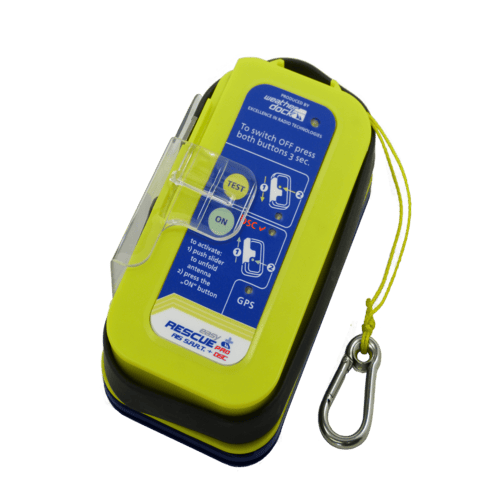

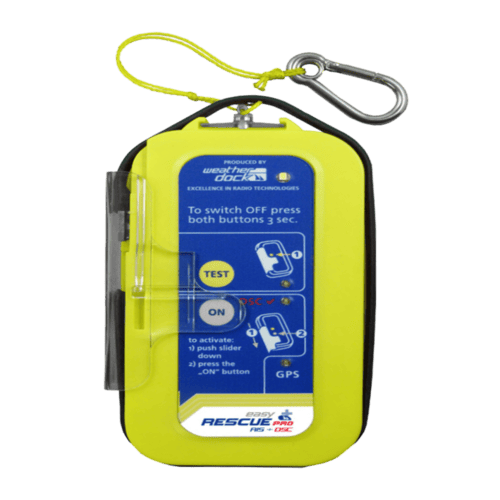

The easyRESCUE‑PRO is a high-performance personal emergency beacon designed to maximize safety at sea by combining AIS (Automatic Identification System) and DSC (Digital Selective Calling) technologies into a compact, waterproof, and buoyant device. Developed for use in man-overboard (MOB) situations, the device is specifically built to ensure rapid rescue and alerting of nearby vessels.

Specifications

Core Features

• Dual Alerting: Sends both AIS (Automatic Identification System) distress signals and DSC (Digital Selective Calling) distress calls simultaneously.

• Activation Modes:

  • Rip‑cord magnetic switch (manual).

  • Automatic water contact trigger.

  • Manual button push

• Buoyancy & Durability:

  • Fully floating, IP68 waterproof (submersible up to 10 m).

  • Device size approx. 125 × 68 × 30 mm; weight ~350 g.

• Battery & Operation Time:

  • Industrial lithium pack with a 5‑year replacement cycle.

  • After activation: ≥ 96 hours of continuous AIS transmission (once DSC “closed‑loop” is acknowledged), up to 24 hours of combined AIS + DSC if DSC runs unacknowledged.

 Navigation & Transmission Details

• AIS Signals:

  • Transmits GPS coordinates, course over ground (COG), speed over ground (SOG), and device ID.

  • Position updates sent every minute (8 times/minute).

• DSC Functionality (Global Maritime Distress & Safety System):

  • Starts with “closed‑loop” to programmed “mother ships” (up to 8 MMSIs).

  • After 10 minutes (or optionally 5 min) without acknowledgment, switches to “open‑loop” (all‑ships call) .

  • If DSC distress call is acknowledged, DSC transmissions cease, while AIS continues.

 Programming & Connectivity

• Bluetooth-enabled (BT version):

  • Connect via free Weatherdock app (iOS/Android) to set up to 8 MMSI numbers.

• Alternative Programming:

  • Via DSC individual call from VHF radio or programming cradle/USB interface.

Technical data

• IP68 waterproof
•  Operating conditions: -20°C – 55°C
•  Dimensions (L/W/H): 125 x 68 x 30 mm
•  Weight: approx. 350 g
•  ≥24 hours of persistent transmission after activation with both technologies
•  Battery lifespan: 5 years (SOLAS standard)
• Service interval:
  * after usage
  * after 5 years, in testing mode only
• ; Bluetooth® LE module
•  Part #A040-PRO(BT)

Highlights

• Automatic activation by water contact
•  Automatic activation by rip cord mechanism with magnetic switch at life vest inflation
• Simultaneous automatic activation of DSC distress call
•  Up to 8 MMSI numbers for „closed loop“ to own ship or group of ships.
•  MMSI numbers pre-programmable via Bluetooth® and free easyRESCUE-PRO App
•  After 10 minutes change to „open loop“, sending to all ships, if no closed loop acknowledgement
• Protection against unintended activation
• Mother ship knows where the victim is
•  Mother ship receives DSC distress call
•  GPS position is updated every minute
•  8 AIS messages per minute
•  Ships with DSC controller can start search and rescue and /or relay the distress call
