Description

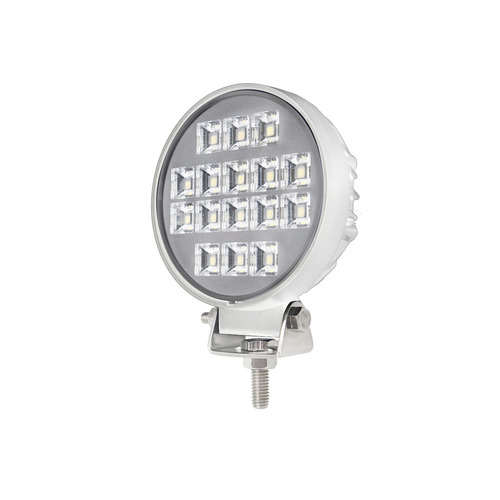

The Deck Flood Light – OW-0702-16W is engineered to provide dependable, broad-area lighting in marine, coastal, and rugged outdoor environments. Drawing only 16 watts, this LED floodlight offers an efficient balance of brightness and power consumption, making it well-suited for continuous use on decks, docks, ship surfaces, and supporting structures.

Its rugged housing is typically constructed from die-cast aluminium, offering excellent thermal management and long-term durability in corrosive or salt-laden atmospheres. The front lens made of tempered glass or durable polycarbonate, is sealed against water and dust ingress to meet a high IP rating. Internally, the LED module provides a flood-type beam (wide spread) to offer even illumination over a broad area, reducing dark spots or concentrated glare.

The lighting unit is built to operate over a range of voltages (for instance 9–32 V DC or a compatible AC input depending on design) and typically includes internal protection features (e.g. surge protection, reverse polarity). A flexible and adjustable mounting bracket allows precise orientation and aiming, adapting to different installation angles. With its compact form, efficient output, and robust construction, the OW-0702-16W is ideal for marine deck lighting, ship exteriors, pier lighting, and general outdoor flood applications where reliability in challenging environments is required.

Features of Deck Flood Light

1. Premium performance high-output LEDs.

2. Die-cast aluminium housing & impact-resistant polycarbonate lens provide rugged durability.

3. Rigid mount provides easy installation.

4. Withstands heavy vibration, corrosion, moisture, and dust.



Specifications of Deck Flood Light

1.Power:16W

2.Luminous flux:1280LM

3.Light source: 16pcs OSRAM

4.Voltage range:9-32V

5.Waterproof rate:IP68

6.PC lens

7.Material of housing: aluminium alloy

8.LED lifetime:30000 hours

9.Operating temperature:-45℃-+85℃

10.Beam:flood and spot beam optional
