Description

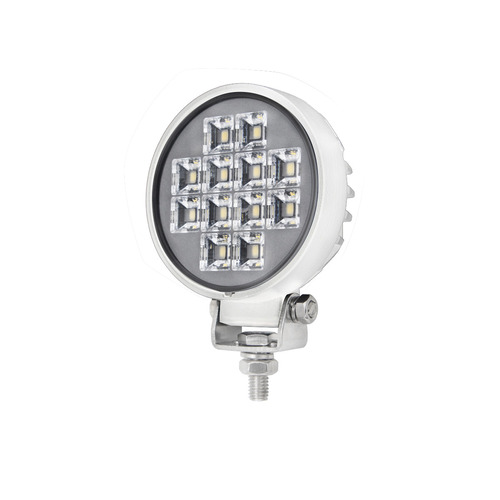

The Deck Flood Light – OW-0702-12W is engineered for demanding marine and outdoor applications, offering dependable, broad-coverage lighting while keeping power usage low. Drawing just 12 watts, this LED floodlight is perfect for continuous or extended duty in decks, docks, ship exteriors, and outdoor work areas.

Its housing is typically constructed from die-cast aluminium, combining rugged durability with efficient heat dissipation to extend component life. The front lens—made from tempered glass or impact-resistant polycarbonate, is fully sealed to achieve a high ingress protection rating, making it resistant to water, dust, salt spray, and corrosion.

The internal LED module outputs a flood-type beam pattern, ensuring wide, even illumination across the target area without spots of glare. The fixture is often designed to operate over a versatile voltage range (for example 9–32 V DC or matched AC input), with internal protection features such as surge suppression and reverse polarity protection.

A stainless-steel adjustable mounting bracket enables flexible installation and beam alignment across various mounting orientations. With long rated lifetime, rugged construction, and proven performance in tough conditions, the OW-0702-12W is an ideal choice for marine deck lighting, vessel exteriors, pier lighting, and general-purpose outdoor flood illumination in challenging environments.

Features of Deck Flood Light

1. Premium performance high-output LEDs.

2. Die-cast aluminium housing & impact-resistant polycarbonate lens provide rugged durability.

3. Rigid mount provides easy installation.

4. Withstands heavy vibration, corrosion, moisture, and dust.



Specifications of Deck Flood Light

1.Power:12W

2.Luminous flux:960LM

3.Light source: 12pcs OSRAM

4.Voltage range:9-32V

5.Waterproof rate:IP68

6.PC lens

7.Material of housing: aluminum alloy

8.LED lifetime:30000 hours

9.Operating temperature:-45℃-+85℃

10.Beam:flood and spot beam optional
