Description

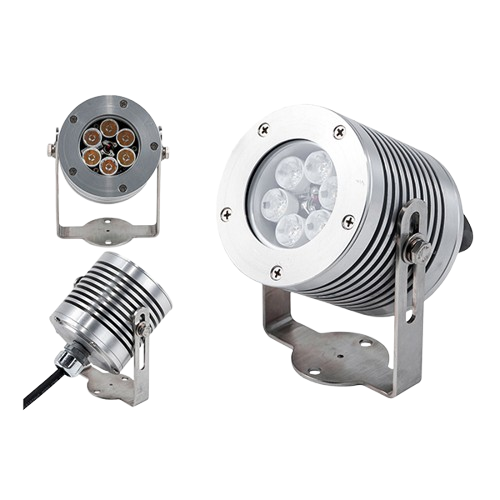

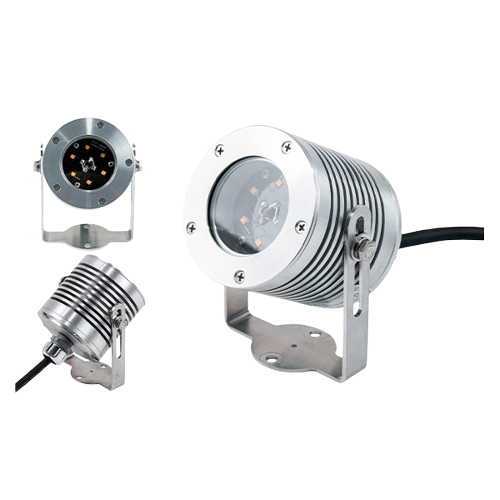

The CANLED Series from Nemalux is a rugged, compact LED luminaire that delivers approximately 500 lumens, purpose-built for tight or remote hazardous environments. Its compact size and robust build make installation feasible in confined or difficult‑to‑access locations, such as sight‑glass panels, nuclear facility task zones, or food and beverage processing lines.
Featuring a single-piece machining aluminum housing with Type II anodized finish, a polycarbonate impact‑resistant lens, and stainless‑steel fasteners, the CANLED is built for corrosive, wet, or otherwise harsh conditions. It is sealed to IP66, with ambient temperature range from −40 °C to +55 °C.
Features:
- Designed for harsh, and hazardous location use.
- Copper-free, aluminum housing with polycarbonate lens.
- Small size allows for deployment in difficult locations.
- Factory sealed with 6ft flying lead and cable gland.
- Thermally managed for maximum longevity.
- Operates on 12 to 24 Volt DC direct input.
Specifications
| Specification | Detail |
|---|---|
| Lumen Output | ~500 lumens |
| Power Consumption | 7–8 watts |
| Input Voltage | 12 V DC (0.66 A) / 24 V DC (0.35 A) |
| Efficacy | ~70 lm/W |
| Color Temperature | 5000 K (Cool White) |
| CRI (Color Rendering) | >70 |
| Light Distribution | Wide flood |
| Beam Angle | ~100° |
| LED Driver | Integrated, DC-compatible switching driver |
