Description

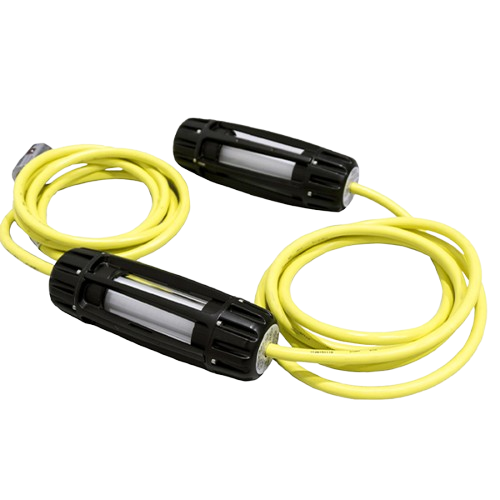

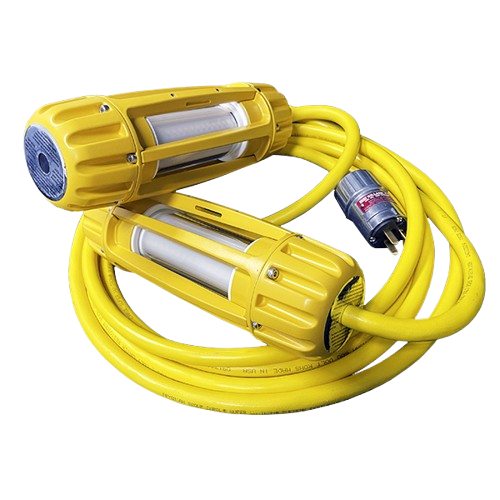

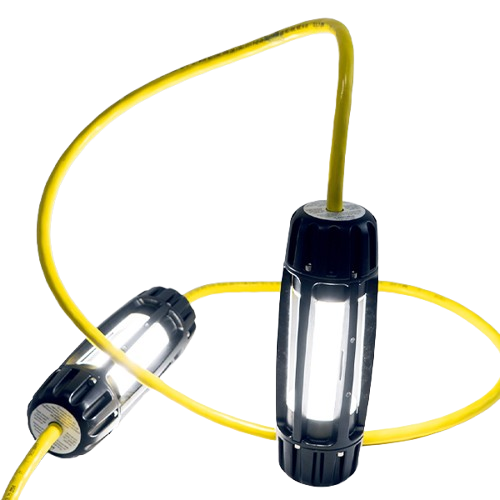

The LS Series by Nemalux is a modular, temporary stringer luminaire designed for harsh and hazardous environments, delivering 1,500 lumens per module. Each lightweight module (~1.2 kg, 2.6 lbs; ~1.6 kg with 10 ft cord) can be chained in strings up to 30 units or 300 ft for expansive coverage. Built for rapid setup and teardown, it offers 360° up/down illumination, field-replaceable components, and flexible mounting—ideal for turnarounds, maintenance shutdowns, and construction sites.
Features:
- Streamlined housing for quick installation and teardown.
- Versatile mounting options for increased flexibility.
- 360° light output provides up-light and down-light.
- Field replaceable sub-assemblies and cable.
Technical Data
| Specification | Detail |
|---|---|
| Luminous Output | ~1,500 lumens per module |
| Module Weight | ~1.2 kg (2.6 lbs), ~1.6 kg (3.5 lbs) with cable |
| String Capacity | Up to 30 modules or ~300 ft |
| Operating Temp. | –50 °C to +70 °C |
| Ingress Rating | IP66 / IP67 |
| Housing Material | Copper‑free cast aluminum with breathing membrane |
| Lens Material | Borosilicate glass or impact flame/UV-resistant polycarbonate |
| Impact Rating | 7 J impact (exceeds IK08) |
| Light Engine Life | TM‑21 L80 > 72,000 h @25 °C |
| Color Temp. | 5,000 K (±300 K indoor); 3,000 K (±300 K outdoor) |
| CRI | ≥80 |
| Driver | Auto-ranging constant-current with 0–10 V dimming and surge suppression |
| Field Serviceability | Replaceable sub-assemblies and cable modules |
| Certifications | UL 1088, UL 1598, UL 1598A, CAN/ULC‑S1088; CSA C22.2 No. 137.18 |
| HazLoc Ratings | Class I Div 2 (ABCD, T5); Class II Div 1 (EFG, T5); Class III; Zones 2/20 |
| Mounting | Rapid-install modular stringer rail, versatile setup |
